Before a pending update, you can save the current settings in the configuration manager as one single file. After the update, you can thus, if necessary, reset your customized workspace.

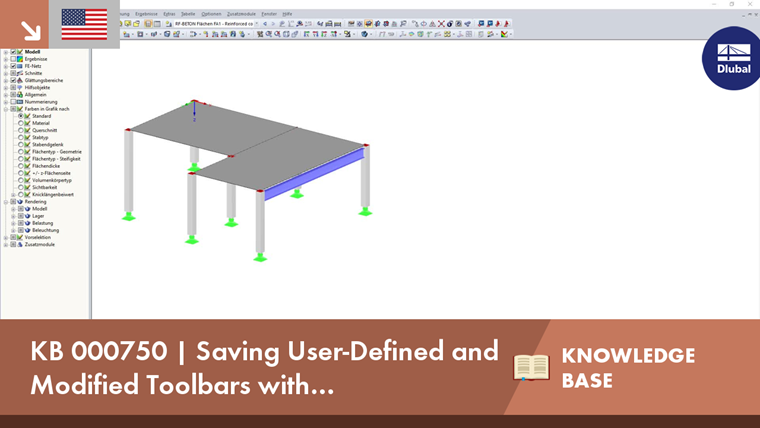

Saving User-Defined and Modified Toolbars with Configuration Manager
An individual user‑defined workspace can increase your productivity and make your daily work easier. This is why many users take the opportunity to adjust the toolbars in RFEM and RSTAB and to create their own toolbars containing the most frequently used commands.
