Arranging Colors in Graphic

For a clearer display of the structure, you can display it in different colors. The corresponding selection can be opened by right-clicking the work window.

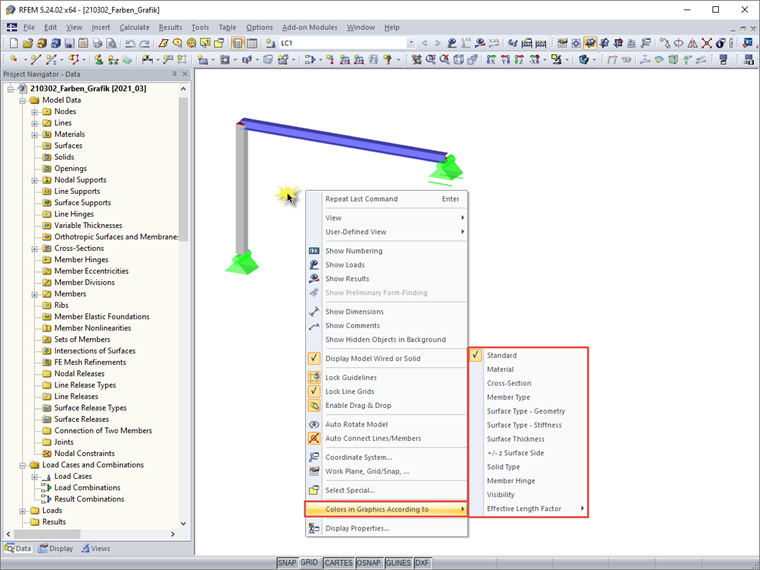

Arranging Colors in Graphic
Arranging Colors in Graphic

In the shortcut menu, the colors of the structure can be displayed according to various criteria. The following criteria can be selected:

  • Standard
  • Material
  • Cross-Section
  • Member Type
  • Surface Type - Geometry
  • Surface Type - Stiffness
  • Surface Thickness
  • +/- Surface Side
  • Solid Type
  • Member Hinge
  • Visibility
  • Effective Length Factor

As an alternative, you can adjust the display in the Display Navigator.

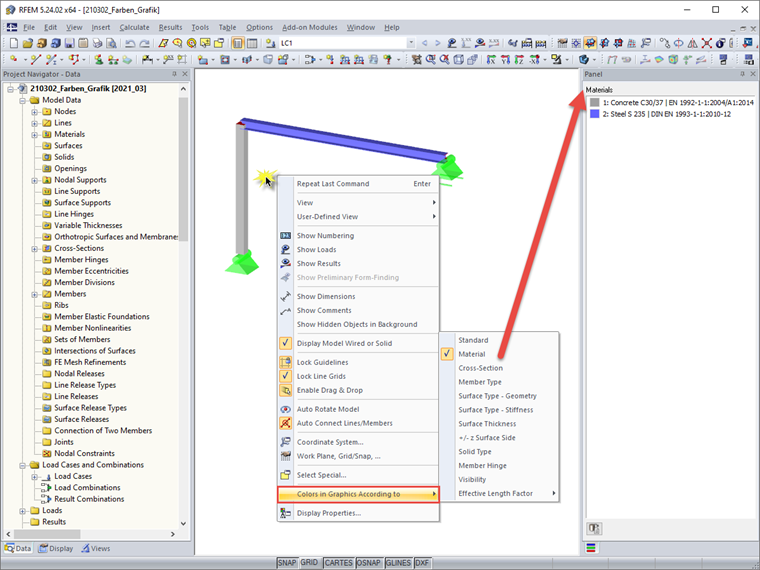

Colors in Graphic According to Material
Colors in Graphic According to Material

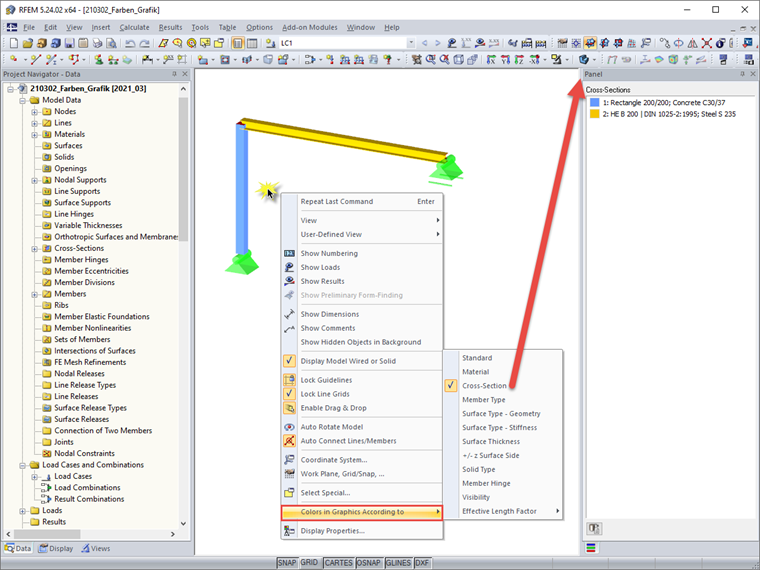

Colors in Graphic According to Cross-Section
Colors in Graphic According to Cross-Section

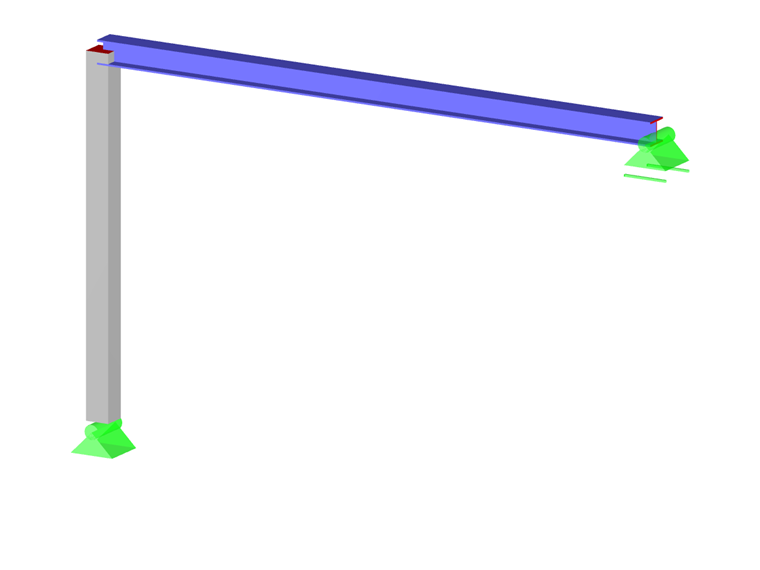

Beam Members
Beam Members
