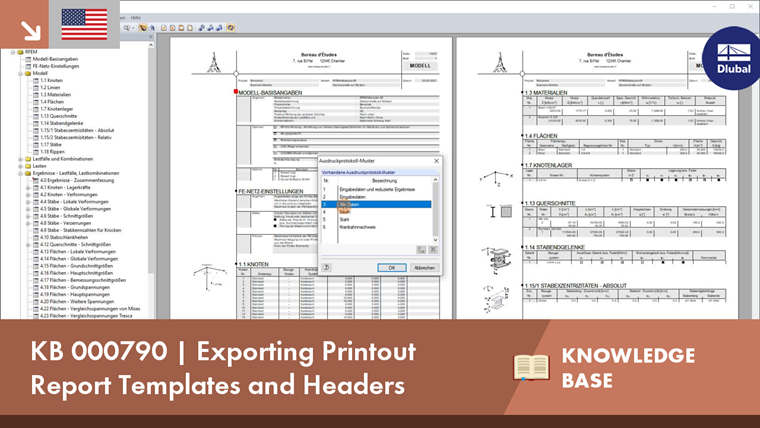

Exporting Printout Report Templates to Other Computers

Tips & Tricks

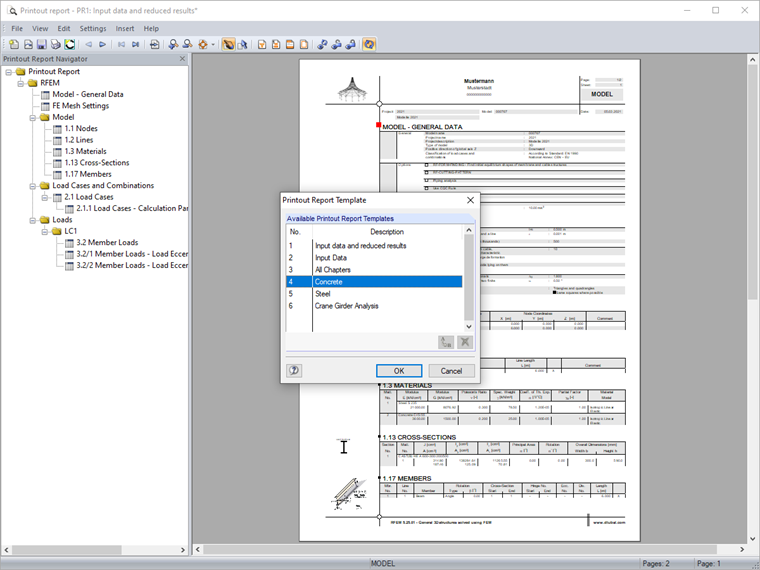

In RFEM and RSTAB, you can create printout templates and user‑defined printout report headers. You can also export them to other computers.

The printout report templates are saved in the files RFEMProtocolConfig.cfg and RSTABProtocolConfig.cfg. They can be found in the master data folders of RFEM or RSTAB:

  • C:\ProgramData\Dlubal\RFEM 5.xx\General Data
  • C:\ProgramData\Dlubal\RSTAB 8.xx\General Data

The report headers are stored in the file DlubalProtocolConfigNew.cfg. It is located in the general master data folder of the Dlubal programs:

  • C:\ProgramData\Dlubal\Global\General Data

If you copy these files to the corresponding directories of the target computer, you can also use the templates and printout headers there.

Keywords

Printout report template Report example Header Company address Copying print template Computer change
