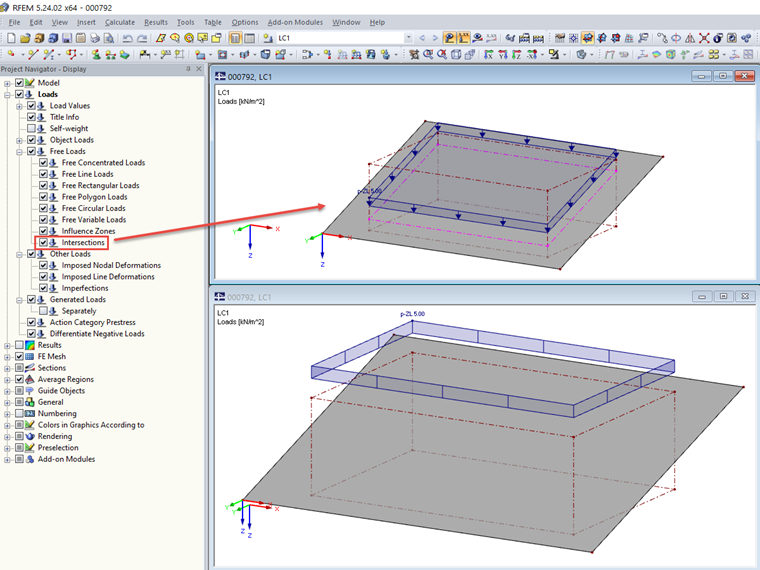

This function can be set as active or inactive in the Display Navigator under "Loads" → "Free Loads" → "Intersections". This function allows you to check the applied load easily and quickly.

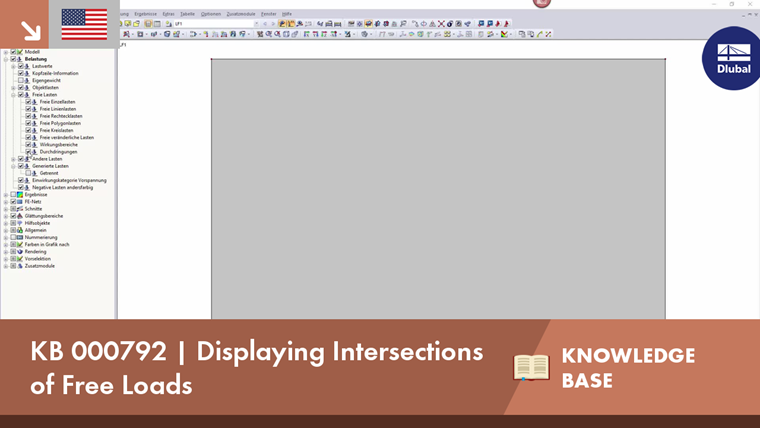

Displaying Intersections of Free Loads
For free loads, RFEM allows you to display the intersections at the respective surface.
