Exporting and Importing Combination Schemes

In RFEM and RSTAB, you can define a user-defined combination scheme. This can be helpful if a desired combination scheme cannot be created from a standard. In such cases, you can export the created load cases to Excel, create the scheme there, then import them to RFEM or RSTAB.

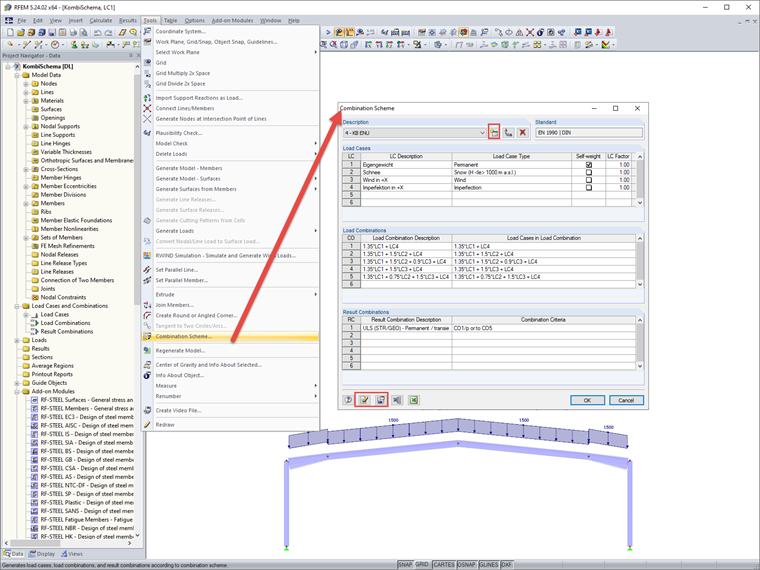

Combination Scheme

In a combination scheme, you specify the load cases, load combinations, and result combinations to be created with the relevant key data and basic settings.

In addition to the number of load cases, load combinations, and result combinations, you define the factors and superposition type in a combination scheme.

The [Generate in Tables Defined Load Cases, Load Combinations, and Result Combinations] button transfers the current combination scheme to the model.

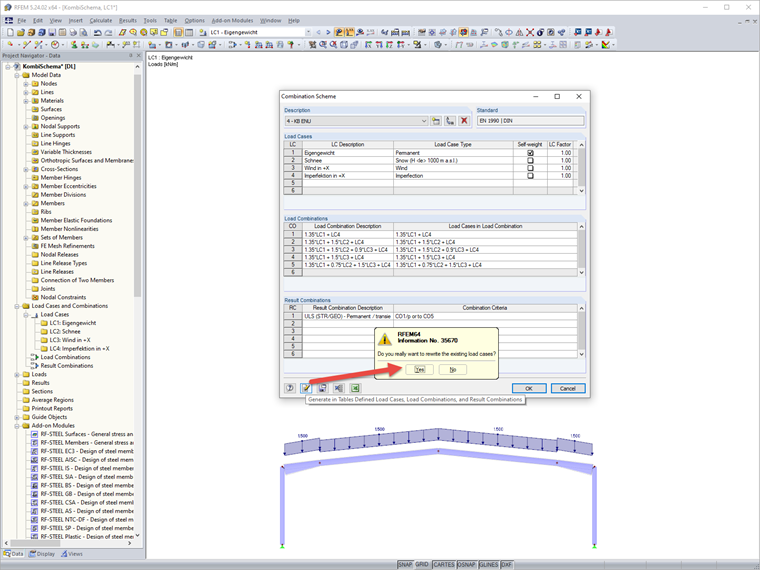

Creating Combinations

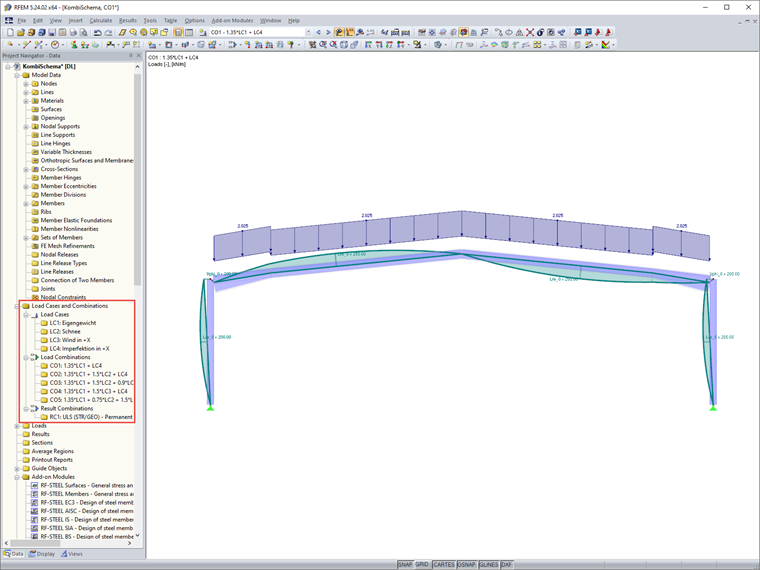

Generated Combinations

The user-defined combination schemes are stored in the KombinSchema.dat file, which is located in the master data folder C:\ProgramData\Dlubal\Global\General Data by default. If you copy this file to another computer, you can also use the combination schemes there.
