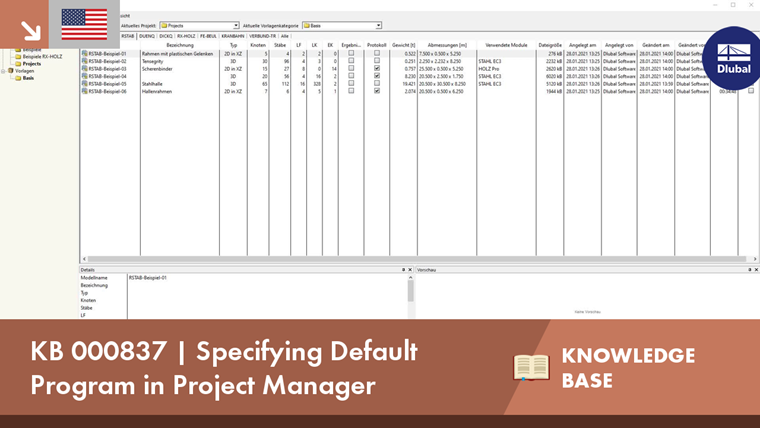

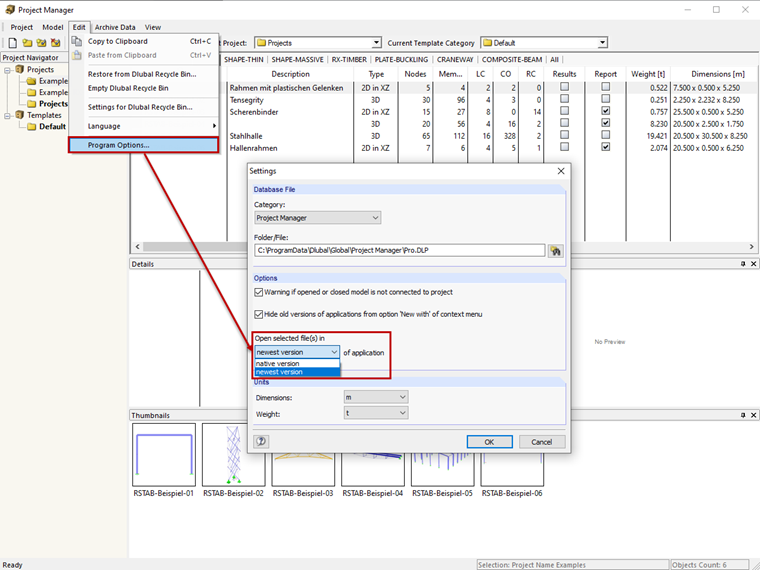

The model files can be opened in the native or the latest version of the application. To specify this, open the Project Manager and select in the menu "Edit" -> "Program Options". "Program Options" can be opened using the Edit → Program Options menu.
