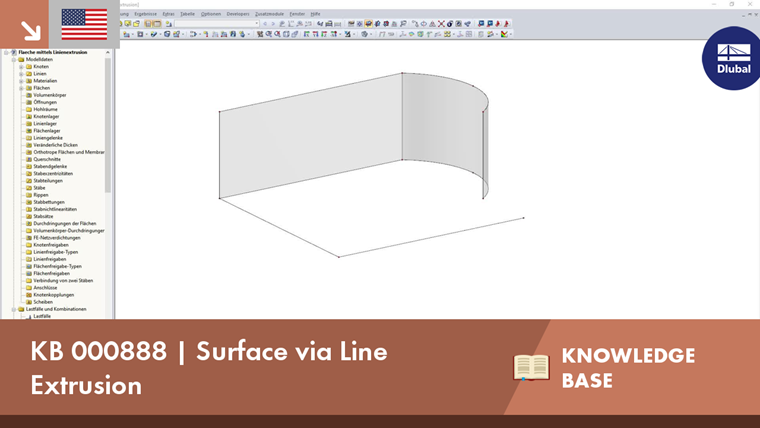

Surface via Line Extrusion

Tips & Tricks

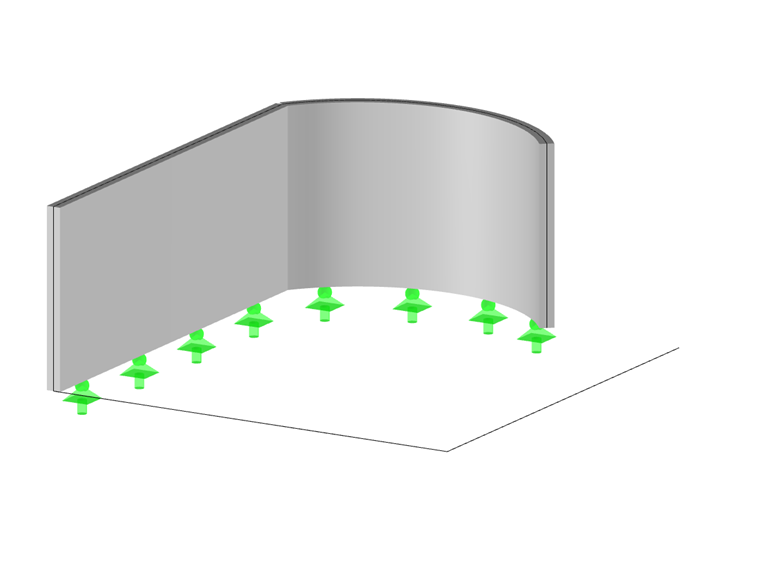

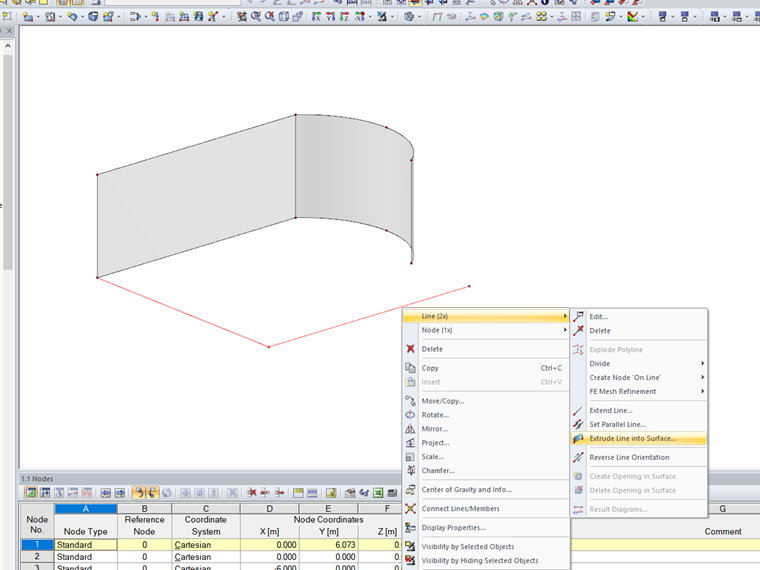

A new function has been implemented in RFEM that automatically generates from lines a surface perpendicular to the work plane.

With this input option, the properties of the surface (material, thickness) are to be defined at the beginning, so you can create an entire floor just by defining the ground plan, for example.

You can also select any line shape for the new surface to be extruded to.
