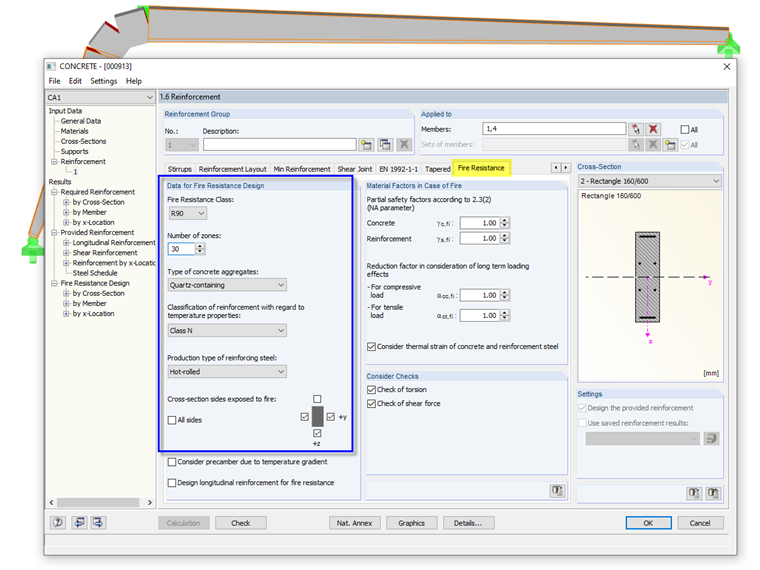

The number of zones can be defined in the "Fire Resistance" tab under the reinforcement specifications. There, you can also specify the fire protection class or the sides of the cross-section that are exposed to fire.

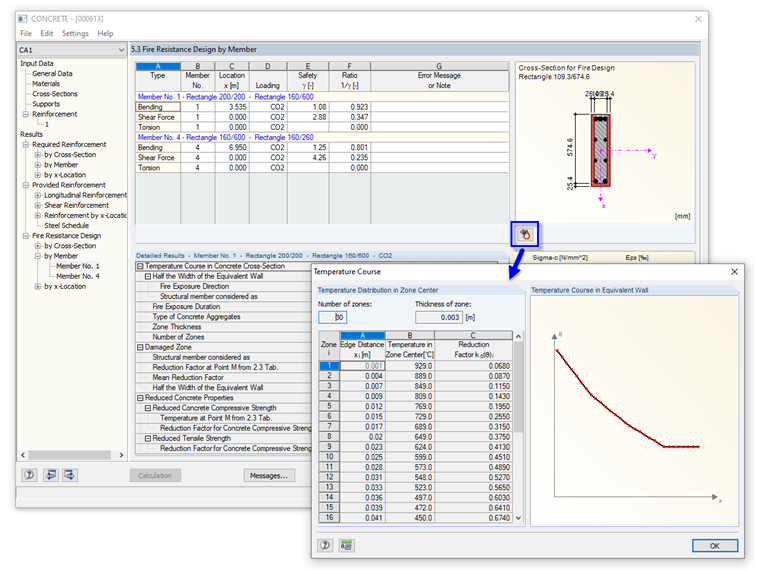

After the design, the damaged zone, including the dimensions, is displayed on the cross-section. Also, the temperature course in the equivalent wall is useful for the evaluation. It can be opened by clicking the [Temperature Course] button.
Mr. Vogl creates and maintains the technical documentation.
Knowledge Base
Knowledge Base
Knowledge Base
The reinforcement proposal from RF-/CONCRETE Members can be exported to Revit. The rectangular and circular cross-sections are currently supported.
The reinforcement bars can be modified retroactively in Revit.
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
The Concrete Design add-on provides you with the option to perform the simplified fire resistance design according to EN 1992‑1‑2 for columns (Section 5.3.2) and beams (Section 5.6).
The following design checks are available for the simplified fire resistance design:
You can determine the internal forces for the fire resistance design according to two methods.
Furthermore, it is possible to modify the axis distance according to Eq. 5.5.
With the Concrete Design add-on, you can perform the fatigue design of members and surfaces according to EN 1992‑1‑1, Chapter 6.8.
For the fatigue design, you can optionally select two methods or design levels in the design configurations:
