You can adjust these settings on the menu "Tools" → "Work Plane, Grid/Snap, Object Snap, Guidelines ...".
Consideration of Guide Objects in Views

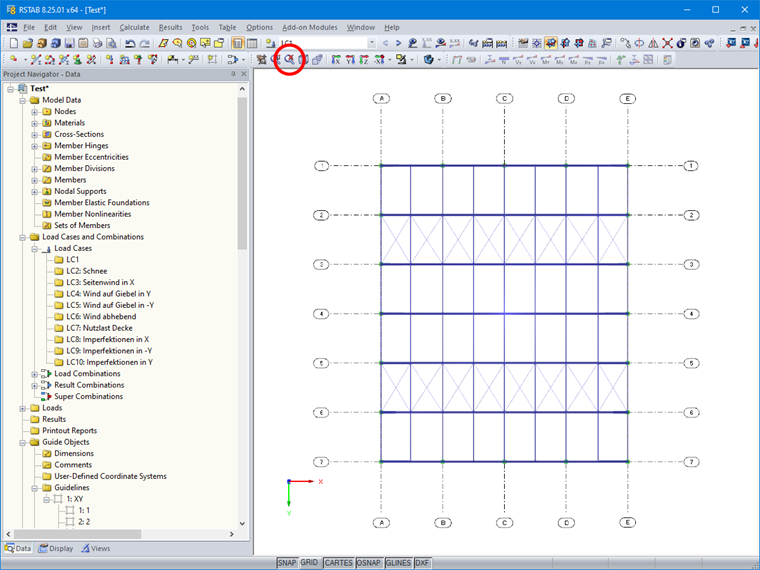

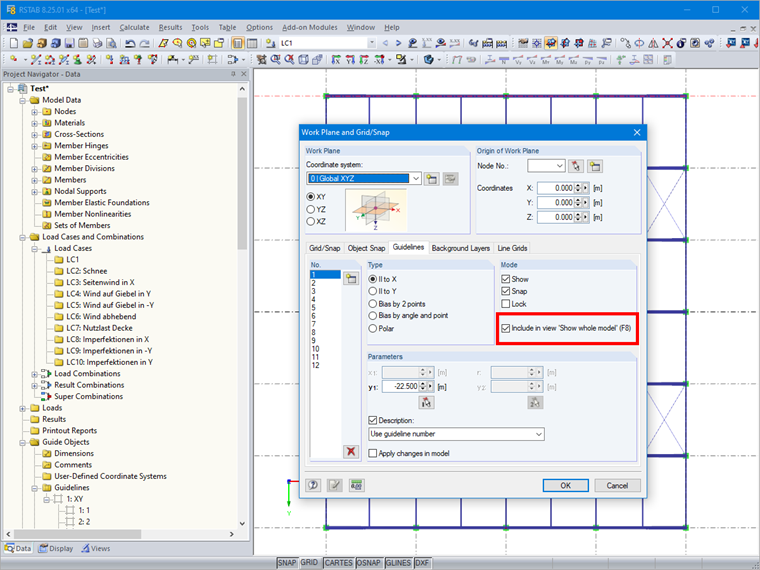

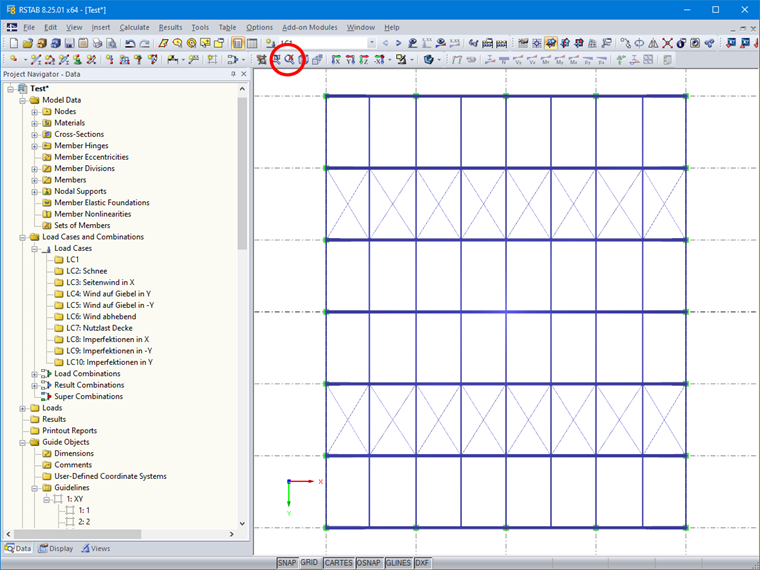

If you want to consider guide objects in the overall view (F8 key or double-click on the mouse wheel) or, for example, in a particular direction of the views, you can enable this option in the settings of the particular guide objects (guidelines, background layers, line grids).
