In addition to general mathematical operations, verification and max/min functions are possible.

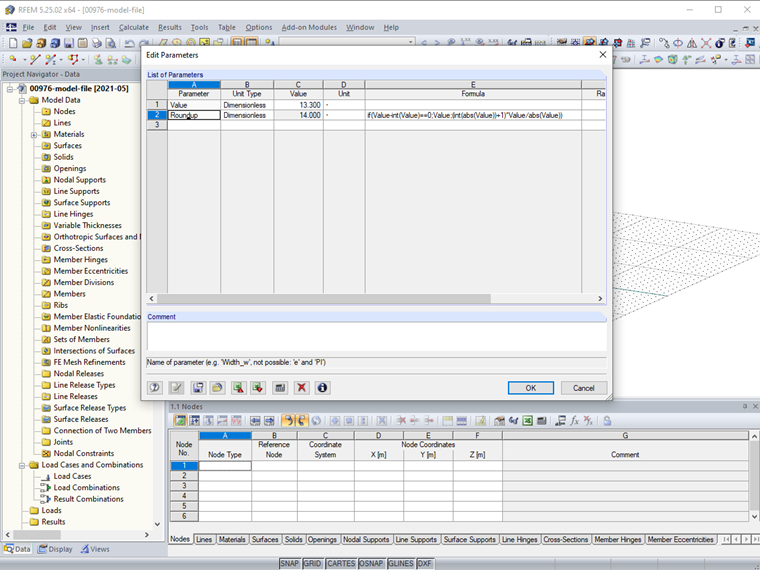

A roundup function is not included. However, it can be represented using the functions available. The function of the Roundup parameter shown in Image 01 rounds up the value of the Value parameter.
