Design of Curved Glulam Beams According to ANSI/AWC NDS
Technical Article
RFEM offers the possibility to model also curved beams. To do this, a curved line must be created first (see Figure 01).This line can then be assigned a beam with a crosssection. The advantages over modelling with beam segments are the easier handling during the modelling as well as the clearer results output of the internal forces.

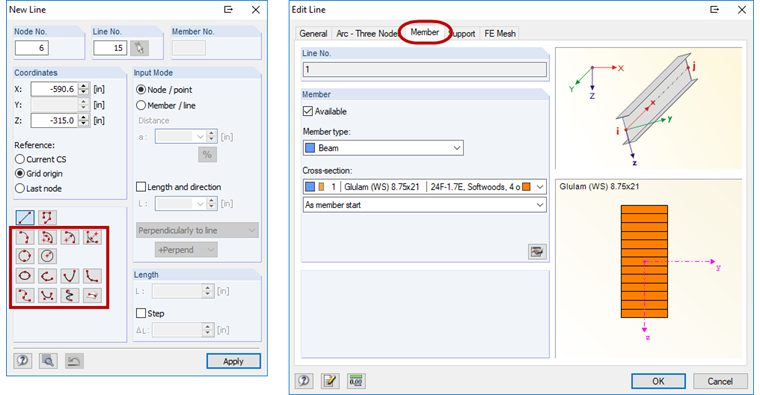

Figure 01  Modelling Curved Beams
Due to the geometric shape and the manufacturing process of a curved gluedlaminated timber, it is necessary to perform separate checks during the design. On the one hand, the course of the bending stress along the beam depth is not linear; furthermore, stresses occur during manufacture due to the bending of the lamellae. The former is due to the fact that the grains on the inside are shorter than those on the outside. Thus, the following applies assuming the Bernoulli's assumptions (flat crosssections remain flat) and assuming that the zero line is in the centre of gravity:
$\frac{\operatorname\Delta\mathrm d\;\cdot\;{\mathrm l}_\mathrm i}{\mathrm d\;\cdot\;{\mathrm l}_\mathrm i}\;=\;{\mathrm\varepsilon}_\mathrm i\;>\;{\mathrm\varepsilon}_\mathrm o\;=\;\frac{\operatorname\Delta\mathrm d\;\cdot\;{\mathrm l}_\mathrm o}{\mathrm d\;\cdot\;{\mathrm l}_\mathrm o}$
Taking into account Hooke's law, the inner edge stresses are larger than the outer ones:
f_{b} = E ∙ ε → f_{b,i} > f_{b,o}
Figure 02  Bending Stress Distribution Along Beam Depth of Curved Beams
These characteristics are taken into account in the design according to [1] with the Curvature Factor C_{c}, which serves as an adjustment factor for the design value of the flexural strength:
F_{b}' = F_{b} ∙ C_{D} ∙ C_{M} ∙ C_{t} ∙ C_{V} ∙ C_{c}
For the system shown in Figure 03, taking into account the 20 times its own weight and a linear stress distribution, a maximum bending stress in the ridge crosssection of 1925.1 psi results. Considering the stresses in an FEM analysis (see Figure 03 below), as explained above, larger bending stresses (1986.4 psi) are displayed as expected.
Figure 03  Comparison of Bending Stresses on Beam Model and on Surface Model (FEA)
For the design of the curved beams in RF/TIMBER AWC, this discrepancy with the Curvature Factor C_{c} is taken into account, as required in [1] (see Figure 04).
$${\mathrm C}_\mathrm c\;=\;1\;\;2000\;\cdot\;\left(\frac{\mathrm t}{{\mathrm R}_\mathrm i}\right)^2\;=\;1\;\;2000\;\cdot\;\left(\frac{1.5\;\mathrm{in}}{274.9\;\mathrm{in}}\right)^2\;=\;0.94$$
Figure 04  Evaluation in RF/TIMBER AWC
If the bending moment increases the radius of curvature, thereby additionally tensile stresses transverse to the grain occur. If the bending moment reduces the radius of curvature, compressive stresses occur across the grain. A schematic representation of how these stresses occur is shown in Figure 05, taking into account a linear longitudinal stress distribution (f_{b,x}).
Figure 05  Generation of Transversal Tension and Transversal Compression Stresses in Curved Area
These radial stresses must be taken into account in the design, since they have a decisive influence on the load capacity. They result in a constant crosssection over the beam depth to:
${\mathrm f}_\mathrm r\;=\;\frac{3\;\cdot\;\mathrm M}{2\;\cdot\;\mathrm R\;\cdot\;\mathrm b\;\cdot\;\mathrm d}\;\cdot\;\left(\mathrm d^2\;\;4\;\cdot\;\mathrm z^2\right)$
The stresses become maximal at the height of the neutral axis, from which follows:
$\mathrm z\;=\;0\;\rightarrow\;{\mathrm f}_\mathrm r\;=\;\frac{3\;\cdot\;\mathrm M}{2\;\cdot\;\mathrm R\;\cdot\;\mathrm b\;\cdot\;\mathrm d}\;=\;\frac{3\;\cdot\;103.2\;\mathrm{kipft}\;\cdot\;12\;\cdot\;10^3}{2\;\cdot\;285.4\;\mathrm{in}\;\cdot\;8.75\;\mathrm{in}\;\cdot\;21\;\mathrm{in}}\;=\;35.4\;\mathrm{psi}$
Since these radial stresses cannot be detected with a beam (1D), these must be determined analytically. Figure 06 shows the results from the FEM calculation (2D) for transverse (top) and lateral (bottom).The results are almost identical to the analytical solution used for beam design in RF/TIMBER AWC (see Figure 07).
Figure 06  FEA of Transversal Tension Stresses (top) and Transversal Compression Stresses (bottom)
Figure 07  Evaluation of Design of Transversal Tension (left) and Transversal Compression (right)
If the check is not provided, the timber will crack at the level of the neutral axis (see Figure 05 on the right).To prevent this, transversal tensile reinforcements can be screwed in, for example in the form of fully threaded screws, which absorb the transversal tension stresses. The force acting on the screw can be determined approximately manually as follows:
T_{r,t} = f_{rt} ∙ b ∙ s = 35.4 psi ∙ 8.75 in ∙ 11.5 in = 3.562 lbf
T_{r,t} = radial force in screw
f_{rt} = radial tension stress
b = beam width
s = spacing between radial reinforcement
In the case of a surface model in RFEM, it is possible to integrate these forces directly from the internal forces in surfaces onto a result beam. This result beam does not bring any further rigidity into the system, but only integrates the internal forces in surfaces. Thus, the normal force of the beam or the reinforcing element can be read directly (see Figure 08).
Figure 08  Result Beams with Integration Areas (top), Tensile Forces in Stiffening Elements (below)
With RFEM, even more complex forms of support can be designed in detail. If the shapes of beams deviate from the standardised shapes of beams, an FEM calculation with surfaces can be helpful as described above.
