Joint-Structure Interaction (JSI) refers to the complex behavior that arises when structural elements, particularly steel members, are connected at a joint. This interaction involves the transfer of forces—such as axial forces, bending moments, shear forces, and torsional moments—between the connected members and the joint itself.
In essence, JSI highlights how the stiffness of joints, such as those in steel connections, influences the overall behavior of the structure. Since joints are not perfectly rigid, they can deform under load, affecting the distribution of internal forces, moments, and displacements throughout the system. Therefore, accurately accounting for JSI is essential for precise load distribution, preventing potential structural failures, and ensuring that the structure adheres to relevant design codes and standards.
Why is it important to consider Joint-Structure Interaction?
1. Accurate Load Distribution
The fundamental purpose of considering JSI in modeling and design is the accurate distribution of forces across the structure. When the joint behavior is not properly accounted for, the forces transferred between the connected members may be miscalculated, leading to incorrect design results. For example, the design of a beam-column joint should consider how the axial force in the column and the bending moment in the beam are transmitted through the joint. Ignoring this interaction can lead to an overestimation or underestimation of the forces in adjacent members, which can result in an unsafe structure.
2. Structural Stability and Safety
Building on the previous point, joints have a critical influence on the distribution of lateral forces and moments. Accurate representation of joint behavior is essential for the structure’s resistance to instability, such as excessive deflections or buckling. Joint-structure interaction (JSI) becomes particularly crucial under dynamic or seismic loads, as it significantly impacts the overall stability. In moment-resisting frames, the joint's capacity to transfer rotational forces is especially important. Failing to account properly for these interactions can result in catastrophic joint failures, compromising the entire structural integrity.
3. Optimization of Material Usage
Proper modeling of JSI allows for the optimization of material usage by ensuring that joints and connected members are designed with sufficient capacity, but not over-designed. Overestimating the forces in a joint could result in larger and heavier connections than necessary, leading to increased material costs. On the other hand, underestimating the forces could lead to unsafe designs. Achieving the correct balance reduces the overall material consumption and construction costs.
4. Code Compliance
Design codes, such as those provided by the Eurocode, AISC, and other regional standards, require specific considerations for the behavior of joints under different loading conditions. These codes provide guidelines for the design and testing of connections in steel structures to ensure safety and performance. Ignoring JSI can lead to non-compliance with these codes, which may result in structural failures, costly repairs, or even legal issues.
Considering Joint-Structure Interaction in RFEM 6 and RSTAB 9

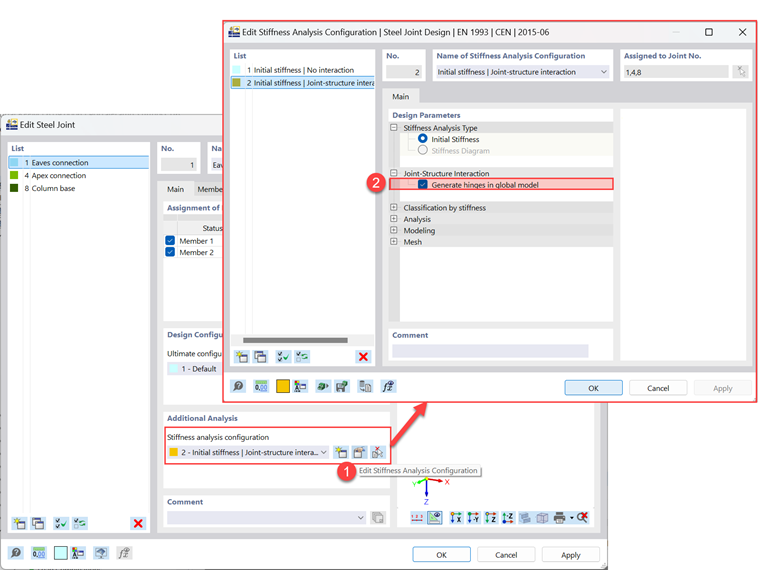

In RFEM 6 and RSTAB 9, Joint-Structure Interaction (JSI) can be modeled effectively using the Steel Joints add-on, providing an efficient and accurate method for simulating semi-rigid steel connections. To enable this, navigate to the joint stiffness analysis configuration (Step 1 in Image 2) and activate JSI by selecting the "Generate hinges in global model" option (Step 2 in Image 2).

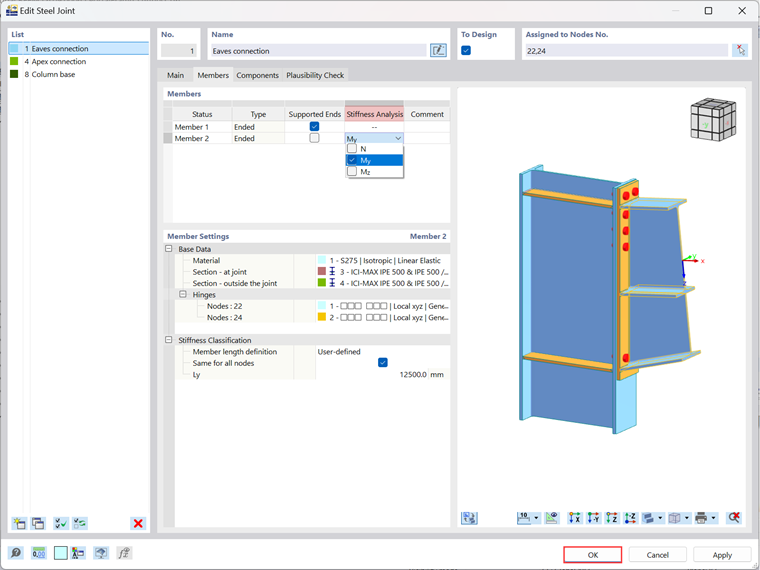

Once this option is activated, ensure that the stiffness analysis settings for the associated members of the joint are configured correctly (see Image 3). Confirm your settings by clicking “OK” to proceed.
These hinges are integrated into the global model before performing the internal force calculations, and only after these calculations are completed are they included in subsequent analyses. This process ensures that the interaction between the joints and the rest of the structure is properly accounted for in the final calculations.
To verify the effect of this setup, you can compare the results from models with and without JSI. Image 4 shows the results of the model with integrated steel joints, considering the interaction with the structure, while Image 5 displays the results of the model without considering JSI. The difference between the two models emphasizes the importance and advantages of properly accounting for joint-structure interaction in the design process.

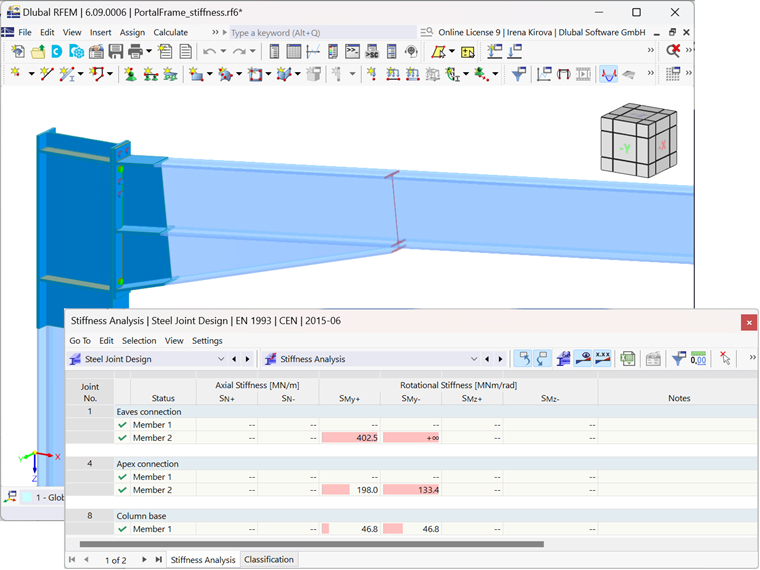

Additionally, you can check the results of the stiffness analysis, as shown in Image 6, to review the obtained stiffness values. This allows you to verify the accuracy of the stiffness calculations and ensure that the joint-structure interaction is represented correctly in the model.
Conclusion
Joint-Structure Interaction is a vital consideration in the design and analysis of steel structures. Properly modeling and understanding this interaction ensures that the structure is safe, stable, and optimally designed.
The Steel Joints add-on in RFEM 6 and RSTAB 9 offers a powerful tool for simulating joint-structure interaction, providing engineers with a more precise and realistic modeling approach. This method eliminates the need for time-consuming manual input of stiffness values, allowing users to focus on the overall design of their structures. This streamlined workflow ensures that engineers can confidently rely on the accurate representation of joint behavior in their models, minimizing the uncertainty typically associated with approximations or simplified joint models. As a result, engineers benefit from more efficient designs, optimized material usage, and the confidence to tackle complex joint behavior with certainty.
