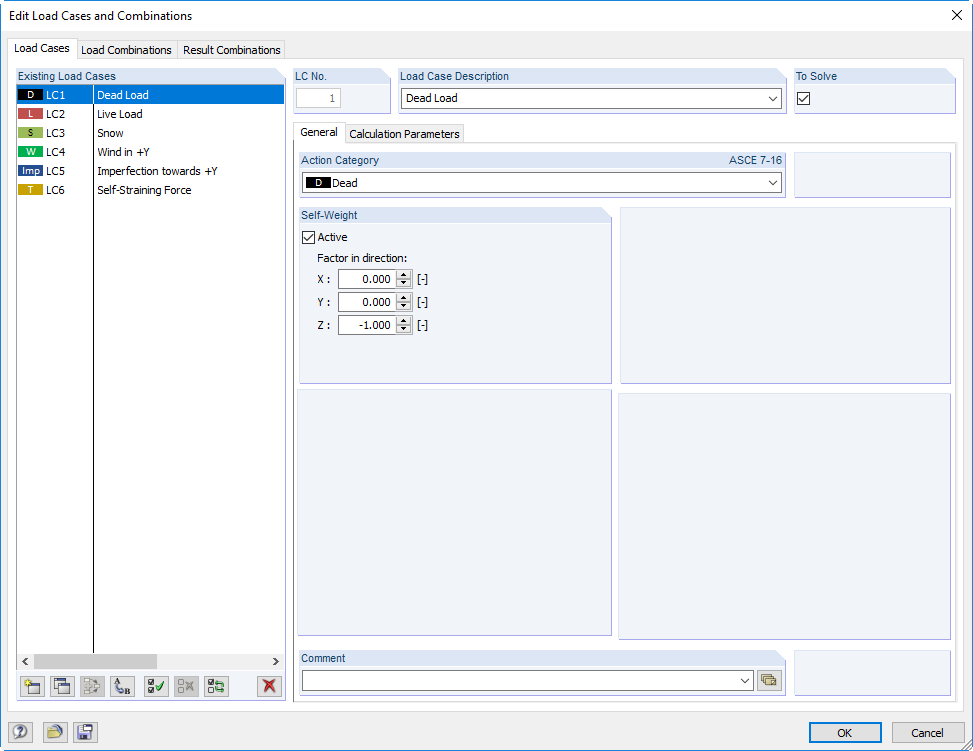

The calculation can be performed for all member types according to the linear static, second-order, or large deformation analysis. This selection option is available for load cases and load combinations. Additional calculation parameters are individually adjustable for load cases, load combinations, and result combinations. This ensures a high degree of flexibility with regard to the calculation method and detailed specifications.
