RF-/STEEL | Input

Product Feature

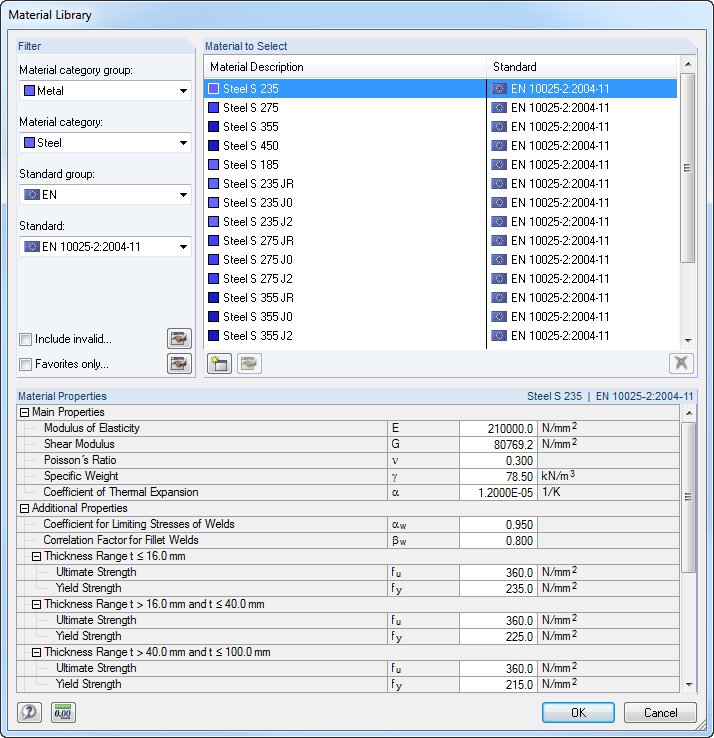

In order to facilitate the data input, there are surfaces, members, sets of members, materials, surface thicknesses, and cross-sections preset. It is possible to select the elements graphically using the [Select] function. The program provides access to the global material and cross-section libraries.

Load cases, load combinations, and result combinations can be combined in various design cases.

Combination of surface and member elements and separate designs allow you to model and analyze only the critical areas such as frame joints by surface elements. The other parts of the model can be designed by member analyses.
