RF-/ALUMINUM ADM | Results

The first results window shows the maximum design ratios with the corresponding design of each designed load case, load combination, or result combination.

The other result windows list all detailed results sorted by specific subject in extendable tree menus. All intermediate results along a member can be displayed at any location. In this way, you can easily retrace how the module has performed the individual designs.

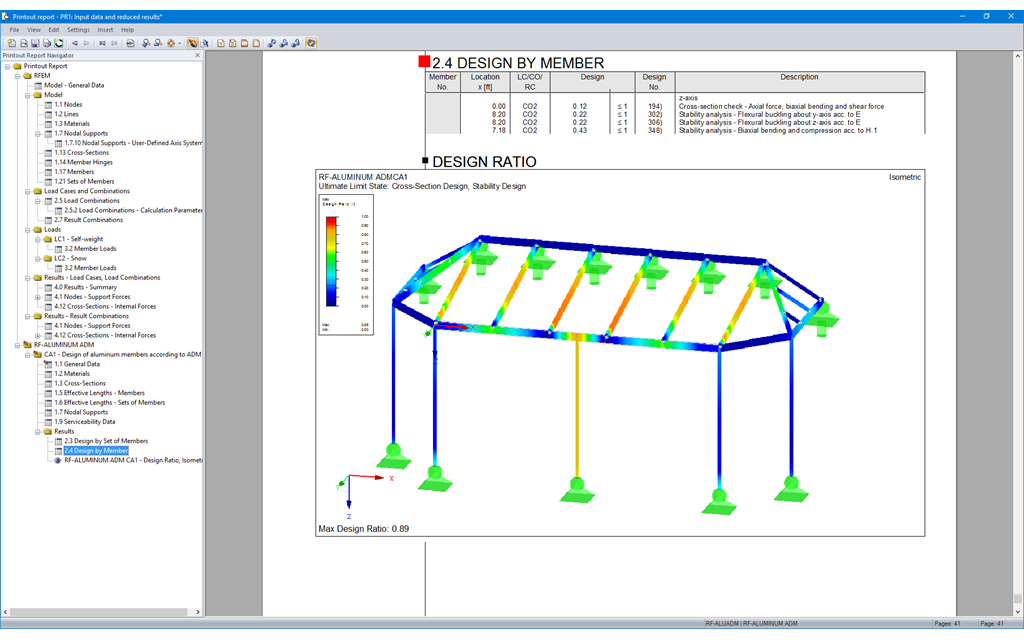

The complete data from the module are part of the RFEM/RSTAB printout report.



;
