RF-/JOINTS Timber - Steel to Timber | Results

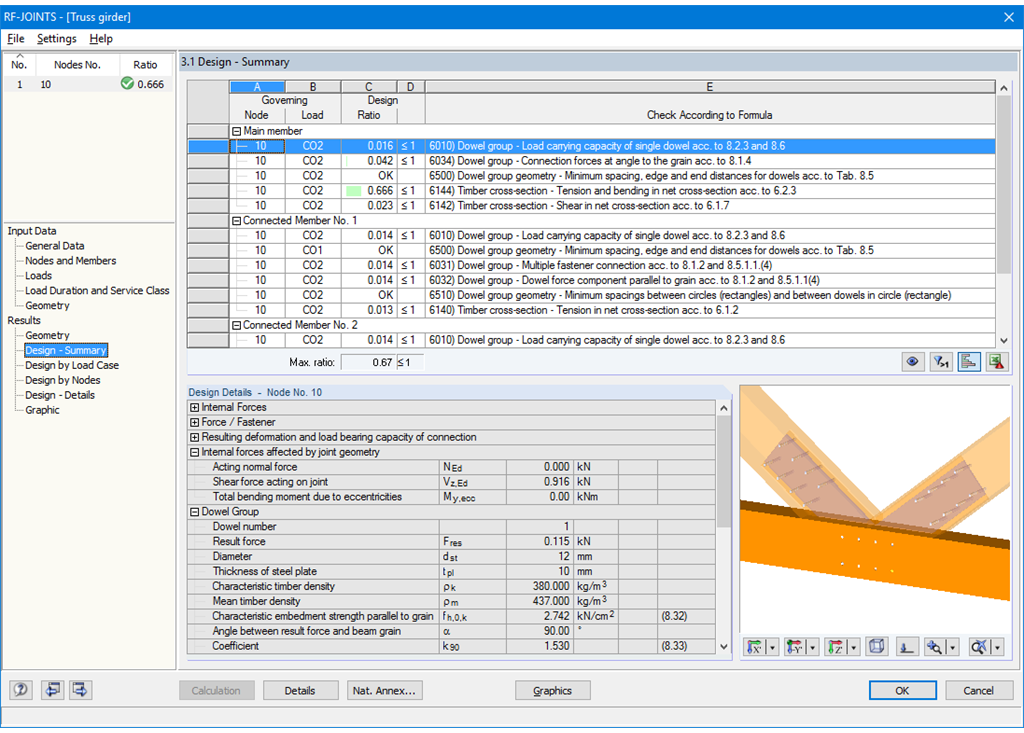

At first, the governing joint designs are arranged in groups and displayed with the basic geometry of the joint in the first result window. In the other result windows, you can see all fundamental design details.
Dimensions and material properties important for the connection construction are displayed immediately and can be printed directly. Similarly, export to DXF-file is enabled. It is possible to visualize the connections in RF‑/JOINTS Timber - Steel to Timber or in the RFEM/RSTAB model.
All graphics can be included in the RFEM/RSTAB printout report or printed directly. Result graphics to scale provide the option of an optimal visual check right from the design phase.
Design of indirect timber connections with dowel-type fasteners and steel plates according to NDS and Eurocode 5
