RF-STABILITY | Calculation

Product Feature

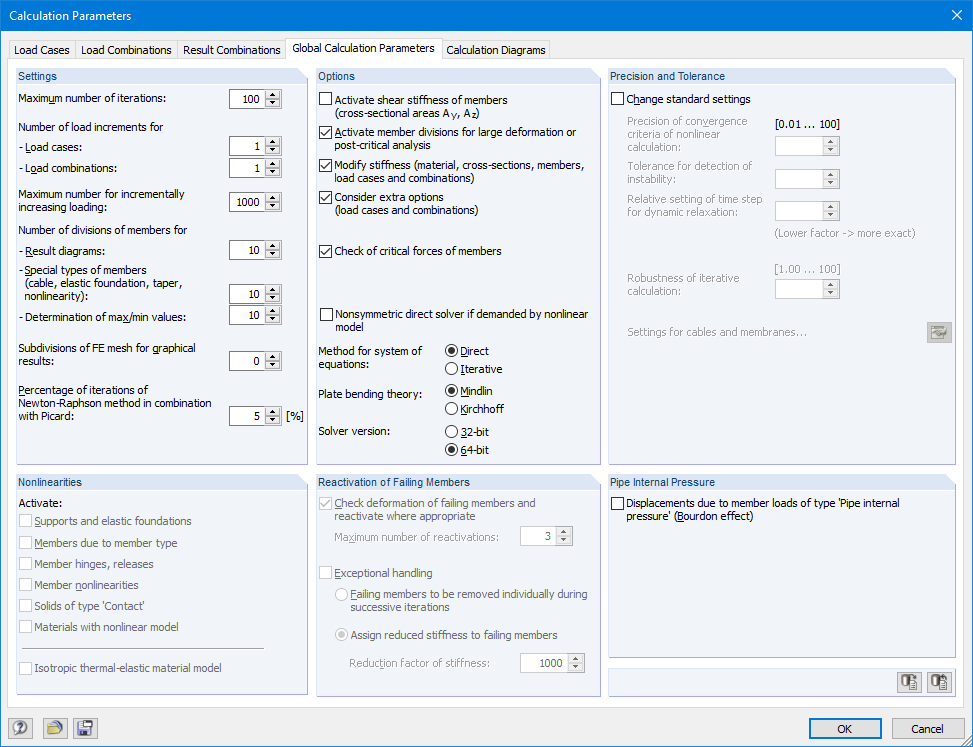

Several methods are available for the Eigenvalue analysis:

  • Direct Methods
    The direct methods (Lanczos, roots of characteristic polynomial, subspace iteration method) are useful for models of small and medium size. These fast methods of equation solvers benefit from lots of the computer memory (RAM). 64-bit systems use more memory so that even bigger structural systems can be calculated quickly.
  • ICG Iteration Method (Incomplete Conjugate Gradient)
    This method requires only a little memory. Eigenvalues are determined one after the other. It can be used to calculate large structural systems with few stability modes.

The RF-STABILITY add-on module can also perform the non-linear stability analysis. Also for non-linear structures, the results close to reality are provided. The critical load factor is determined by increasing the loads of the selected load case step by step until the instability is reached. Nonlinearities such as failing members, supports and foundations as well as material nonlinearities are considered when increasing the loads.
