RX-TIMBER Purlin | Design

Product Feature

The design analyzes tension and compression along the grain, bending, bending and tension or compression as well as shear due to shear force with and without torsion. The analyses are performed at the level of stress design values. For the design of structural components with a risk for buckling and lateral buckling, the program considers axial compression, bending with and without compressive force as well as bending and tension.

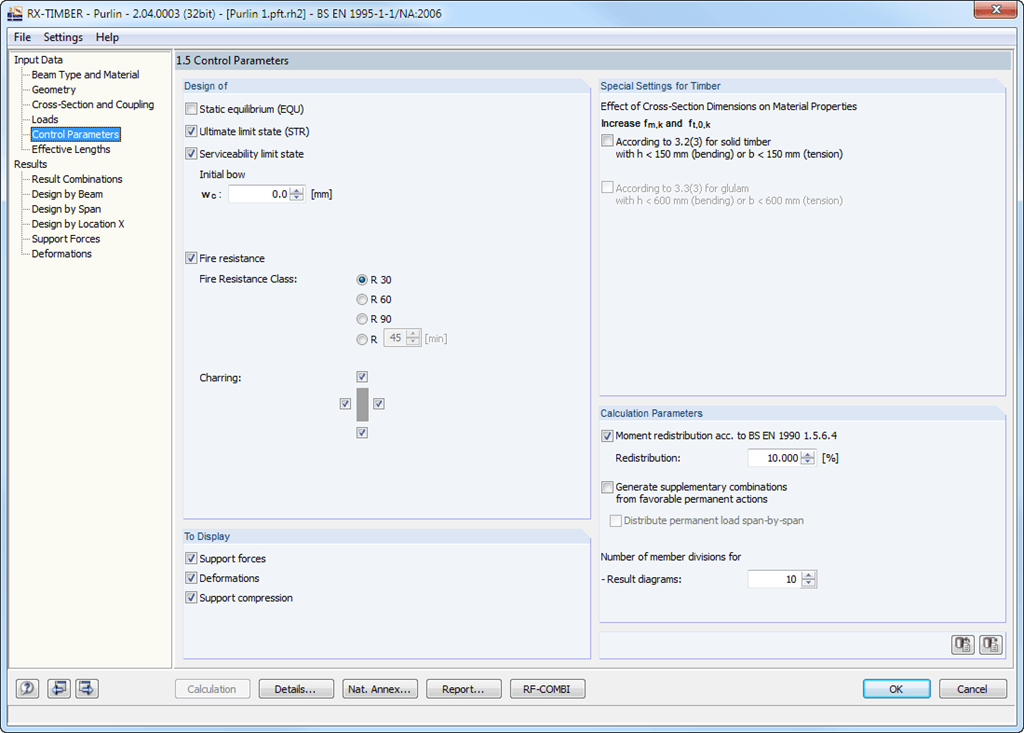

The deflection in the characteristic and quasi-permanent design situations is determined for inner spans and cantilevers. Separate design cases allow for a flexible analysis of specific actions as well as for individual stability analyses. You can define the design type to be performed in the Control Parameters window.

Contact us

Contact to Dlubal

Do you have any questions or need advice?
Contact us or find various suggested solutions and useful tips on our FAQ page.

+49 9673 9203 0

info@dlubal.com

Stand-Alone Timber Structures
RX-TIMBER Purlin 2.xx

Stand-Alone Program

Timber design of coupled purlins and continuous beams according to Eurocode 5 or DIN 1052

Price of First License
360.00 USD
