Result windows list details of all calculation results. Moreover, a 3D graphic is created where it is possible to show and hide single components as well as dimension lines and, for example, weld data.

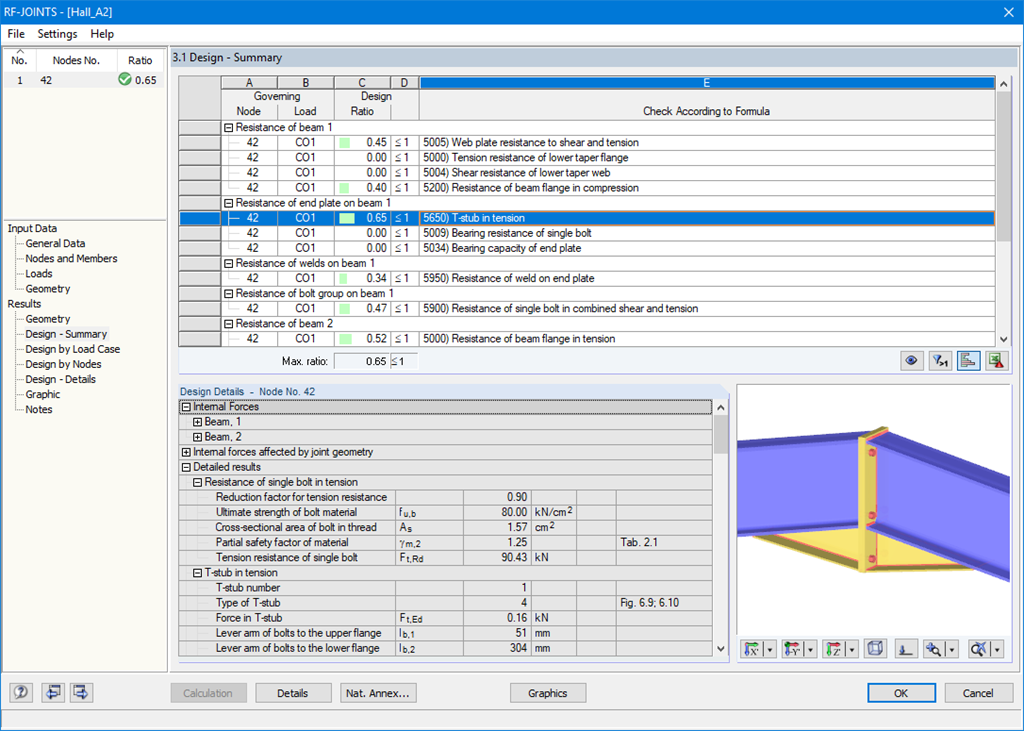

The summary shows whether or not the individual designs have been fulfilled. In addition, the node number and the governing load case or the governing load/result combination are indicated.
When selecting a design, the module shows the detailed intermediate results including the actions and the additional internal forces from the connection geometry. Moreover, there is the option to display the results by load case and by node. The connections are represented in a realistic 3D rendering possible to scale. In addition to the main views, it is possible to show the graphics from any perspective.
You can add the graphics with dimensions and labels to the RFEM/RSTAB printout or export them as DXF. The printout report includes all input and result data prepared for test engineers. It is possible to export all tables to MS Excel or as a CSV file. A special transfer menu defines all specifications required for the export.
In RF-/STEEL EC3, sets of members are calculated according to the General Method (EN 1993-1-1, Cl. 6.3.4) together with the stability analysis. To do this, it is necessary to determine the correct support conditions for the equivalent structure with four degrees of freedom.
RFEM/RSTAB add-on module RF-/JOINTS Steel-DSTV | Standardized connections in steel buildings according to EC 3
