4.3 Design by Set of Members

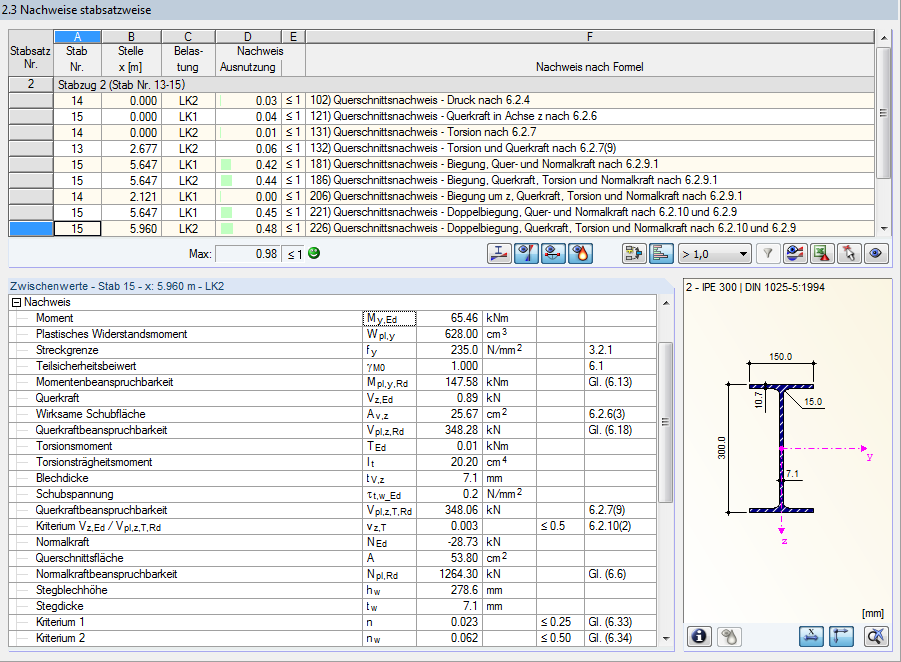

Figure 4.8 Window 2.3 Design by Set of Members

This results window is displayed if at least one set of members has been selected for design. The window lists the maximum design ratios sorted by set of members.

The Member No. column shows the number of the member within the set of members that bears the maximum ratio for the individual design criteria.

The output by set of members allows you to clearly present the design of an entire structural group (a frame, for example).
