4.5 Design by x-Location

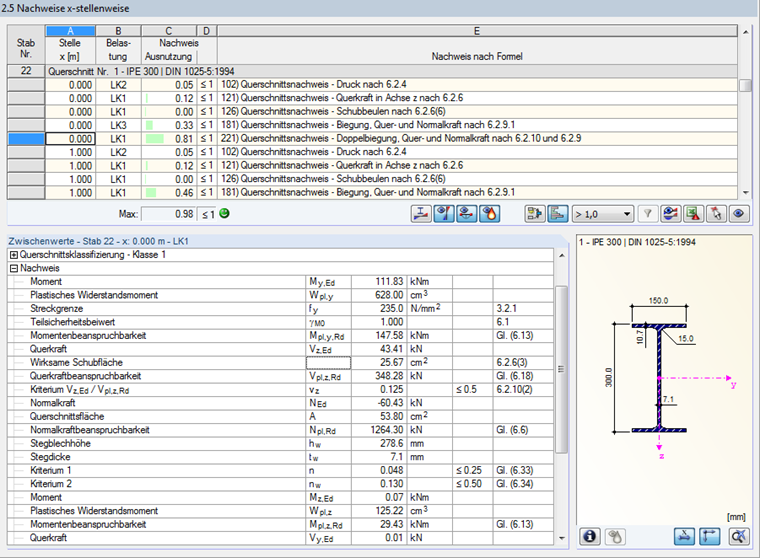

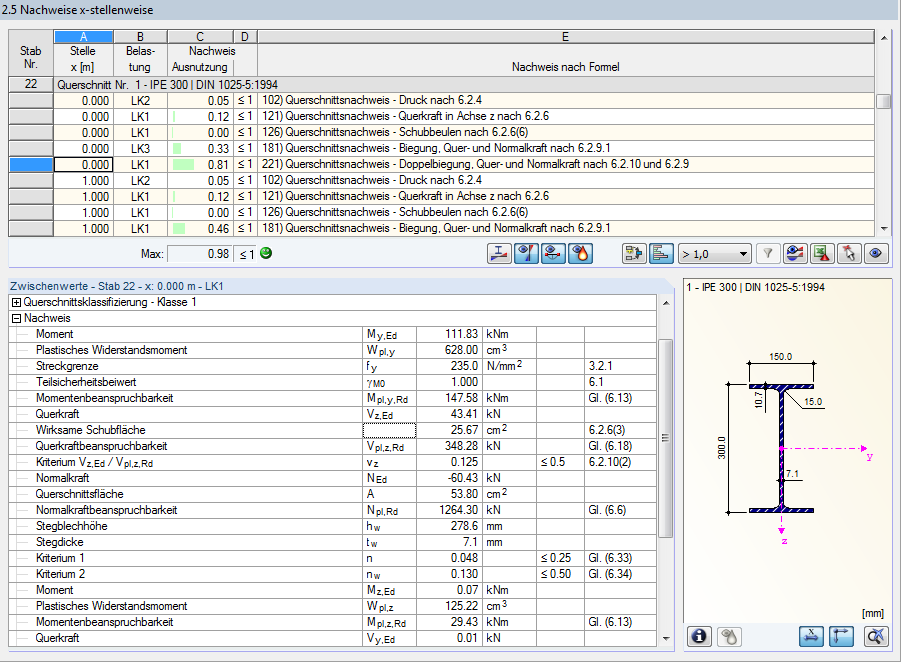

Figure 4.10 Window 2.5 Design by x-Location

This results window lists the maxima for each member at all locations x, resulting from the division points defined in RFEM or RSTAB:

  • Start and end node
  • Division points according to optionally set member division (RFEM Table 1.16 or RSTAB Table 1.6)
  • Member division according to specification for member results (Calculation Parameters dialog box of RFEM/RSTAB, Global Calculation Parameters tab)
  • Extreme values of internal forces
