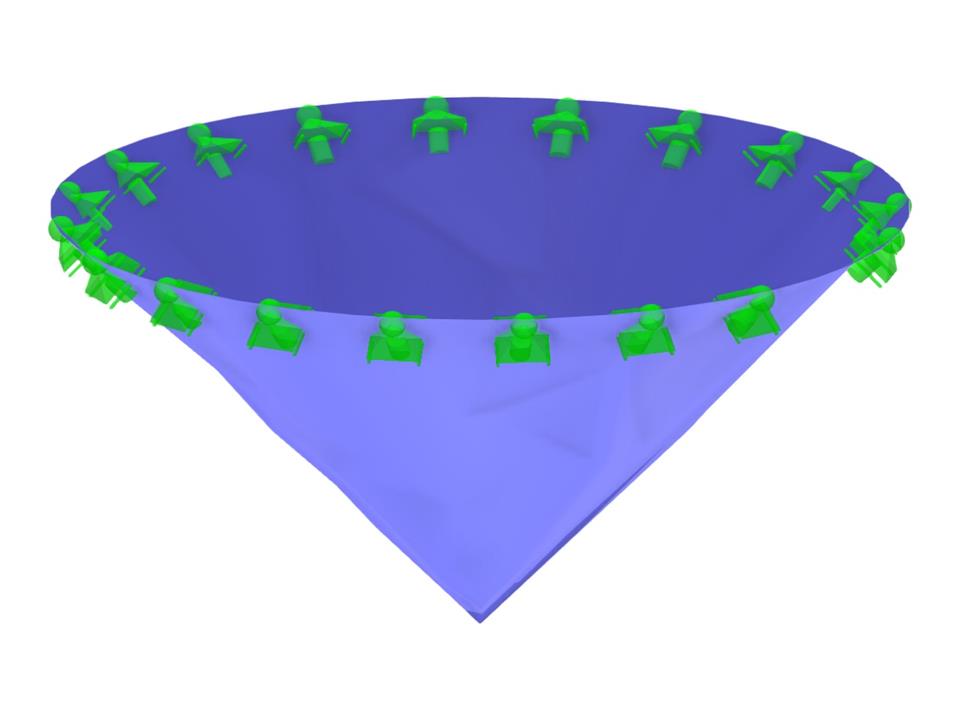

A thin-walled conical vessel is filled with water. Thus, it is loaded by the hydrostatic pressure. While neglecting self-weight, determine the stresses in surface line and circumferential direction. The analytical solution is based on the theory of thin-walled vessels. This theory was introduced in Verification Example 0084.
Verification Example 000085 | 1
| Number of Nodes | 8 |
| Number of Lines | 3 |
| Number of Surfaces | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.140 tons |
| Dimensions | 23.98 x 23.9 x 16.04 feet |
| Program Version | 5.12.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
