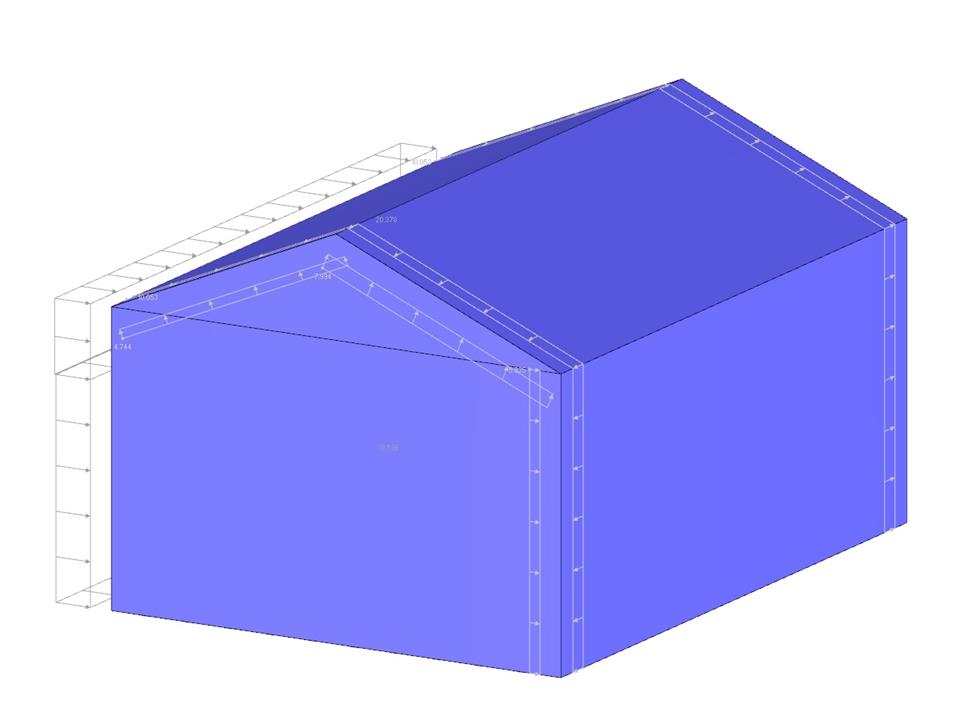

This verification example compares wind load calculations on a duopitch roof building by means of the ASCE 7-16 standard and by means of CFD simulation in RWIND Simulation. The building is defined according to the sketch and the inflow velocity profile taken from the ASCE 7-16 standard.
Model Used in
Verification Example 001009 | 1
| Number of Nodes | 11 |
| Number of Lines | 17 |
| Number of Surfaces | 10 |
| Number of Load Cases | 3 |
| Total Weight | 1154.601 tons |
| Dimensions (Metric) | 10.058 x 13.411 x 8.230 m |
| Dimensions (Imperial) | 33 x 44 x 27 feet |
| Program Version | 5.22.03 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
