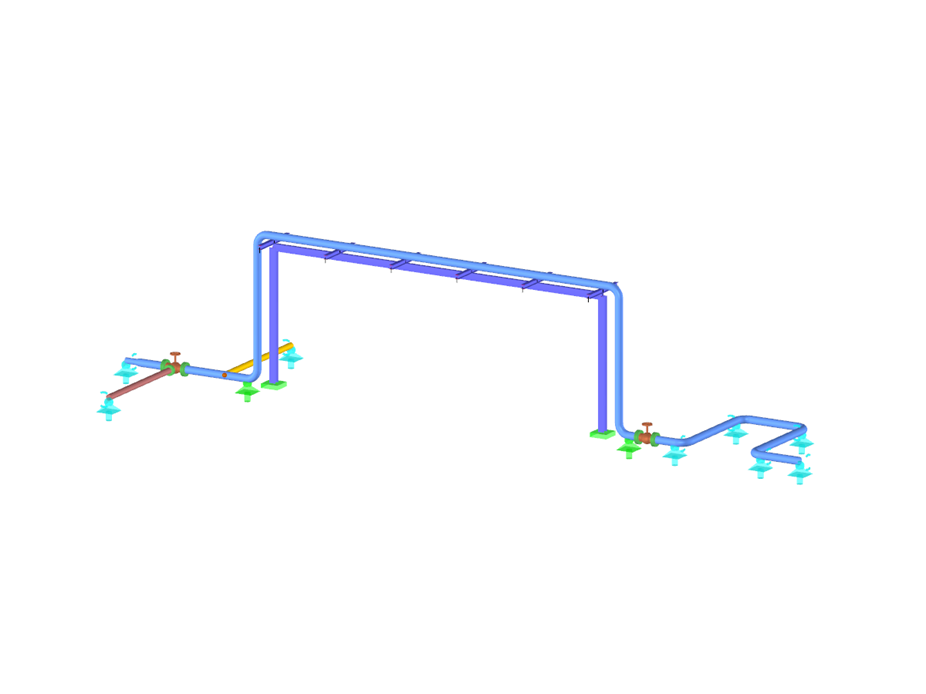

Piping System

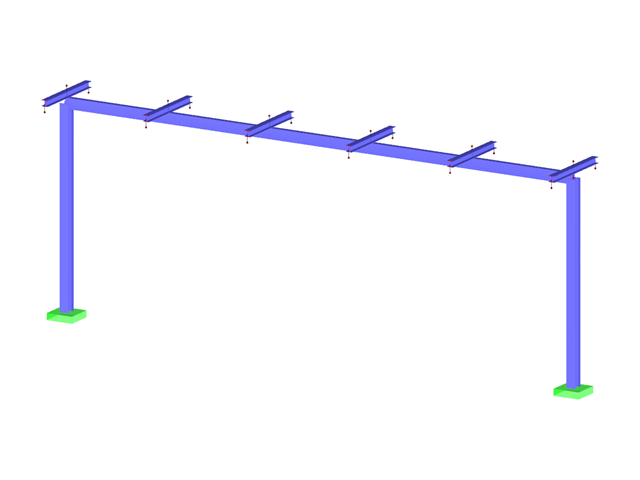

Pipe Rack
| Number of Nodes | 71 |
| Number of Lines | 59 |
| Number of Members | 59 |
| Number of Load Cases | 6 |
| Total Weight | 1.868 tons |
| Dimensions | 68.9 x 24.61 x 13.94 feet |
| Program Version | 5.06.30 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
Knowledge Base
Knowledge Base
Knowledge Base
After activating the RF‑PIPING add‑on module, a new toolbar is available in RFEM and the project navigator and tables are extended. The piping system is now modeled in the same way as the members. Pipe bends are defined simultaneously by tangents (straight pipe sections) and radius. Thus, it is easy to subsequently change bend parameters.
It is also possible to extend the piping subsequently by defining special components (expansion joints, valves, and others). The implemented libraries of structural components facilitate the definition.
Continuous pipe sections are defined as sets of piping systems.
For piping loads, member loads are assigned to the respective load cases. The combination of loads is included in piping load combinations and result combinations.
After the calculation, you can display deformations, member internal forces, and support forces graphically or in tables.
Pipe stress analysis according to standards can then be performed in the RF‑PIPING Design add‑on module. You only need to select the relevant sets of piping systems and load situations.
- Response spectra in accordance with different standards
- The following standards are implemented:
-
EN 1998-1:2010 + A1:2013 (European Union) -
DIN 4149:1981-04 (Germany) -
DIN 4149:2005-04 (Germany)
-
IBC 2000 (USA) -
IBC 2009-ASCE/SEI 7-05 (USA)
-
IBC 2012/15 - ASCE/SEI 7-10 (USA)
-
IBC 2018 - ASCE/SEI 7-16 (USA)
-
ÖNORM B 4015:2007-02 (Austria) -
NTC 2018 (Italy) -
NCSE-02 (Spain) -
SIA 261/1:2003 (Switzerland) -
SIA 261/1:2014 (Switzerland)
-
SIA 261/1: 2020 (Switzerland)
-
O.G. 23089 + OG 23390 (Turkey) -
SANS 10160-4 2010 (South Africa) -
SBC 301:2007 (Saudi Arabia) -
GB 50011 - 2001 (China) -
GB 50011 - 2010 (China)
-
NBC 2015 (Canada) -
DTR BC 2-48 (Algeria) -
DTR RPA99 (Algeria)
-
CFE Sismo 08 (Mexico) -
CIRSOC 103 (Argentina) -
NSR - 10 (Colombia) -
IS 1893:2002 (India) -
AS1170.4 (Australia) -
NCh 433 1996 (Chile)
-
- The following National Annexes according to EN 1998‑1 are available:
-
DIN EN 1998-1/NA:2011-01 (Germany)
-
ÖNORM EN 1991-1-1:2011-09 (Austria)
-
NBN - ENV 1998-1-1: 2002 NAD-E/N/F (Belgium) -
ČSN EN 1998-1/NA:2007 (Czech Republic) -
NF EN 1998-1-1/NA:2014-09 (France) -
UNI-EN 1991-1-1/NA:2007 (Italy)
-
NP EN 1998-1/NA:2009 (Portugal) -
SR EN 1998-1/NA:2004 (Romania) -
STN EN 1998-1/NA:2008 (Slovakia) -
SIST EN 1998-1:2005/A101:2006 (Slovenia) -
CYS EN 1998-1/NA:2004 (Cyprus) -
NA to BS EN 1998-1:2004:2008 (United Kingdom) - NS-EN 1998-1:2004 + A1:2013/NA:2014 (Norway)
-
- User-defined response spectra
- Direction-relative response spectrum approach
- Relevant mode shapes for the response spectrum can be selected manually or automatically (5% rule from EC 8 can be applied)
- Generated equivalent static loads are exported to load cases, separately for each modal contribution and separately for each direction
- Result combinations by modal superposition (SRSS and CQC rule) and direction superposition (SRSS or 100% / 30% rule)
- Signed results based on the dominant eigenmode can be displayed
After modeling piping systems in RFEM using RF‑PIPING and defining loads as well as load and result combinations, you can carry out pipe stress analysis in the RF‑PIPING Design add‑on module.
You can select all or only some pipelines and loads, load or result combinations for piping design. The material library provides various materials according to EN 13480‑3, ASME B31.1‑2012, and ASME B31.3‑2012 standards.
After the calculation, the results are displayed in clearly arranged windows; for example, by cross‑section, by pipeline, or by members. You can also display the design ratio graphically on the entire model in RFEM. This way, you can quickly recognize critical or oversized areas of the cross-section.
In addition to the input and result data, including design details displayed in tables, you can add all graphics into the printout report. This way, comprehensible and clearly arranged documentation is guaranteed. You can select the report contents and extent specifically for the individual designs.
- Design according to EN 13480-3, ASME B31.1-2012, and ASME B31.3-2012
- Check of the minimum required wall thickness of the pipes, taking into account manufacturing allowances, corrosion, and welding factor
- Analysis of stresses due to sustained loads, sustained and occasional loads as well as due to thermal expansion
- Result documentation with tables and graphics in the RFEM printout report
