Parameterisation of geometry of a section of railway track.
- Model created by the technical team of Dlubal Latam. The model is also available as a parameterized block at the Dlubal Latam site.
The file to download contains a parametrized model saved as a block (*.rf6 file type).

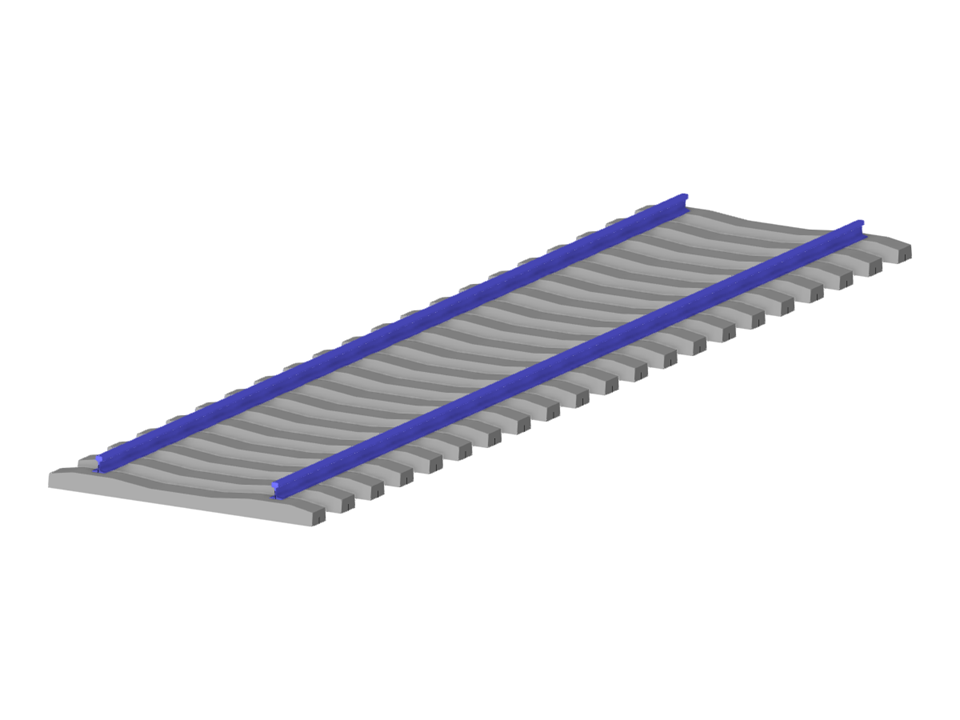

Railway Track Section
| Block parameters editable dynamically | |
| Number of Nodes | 252 |
| Number of Lines | 107 |
| Number of Members | 107 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 4.939 tons |
| Dimensions | 8.53 x 0.52 x 32.81 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
