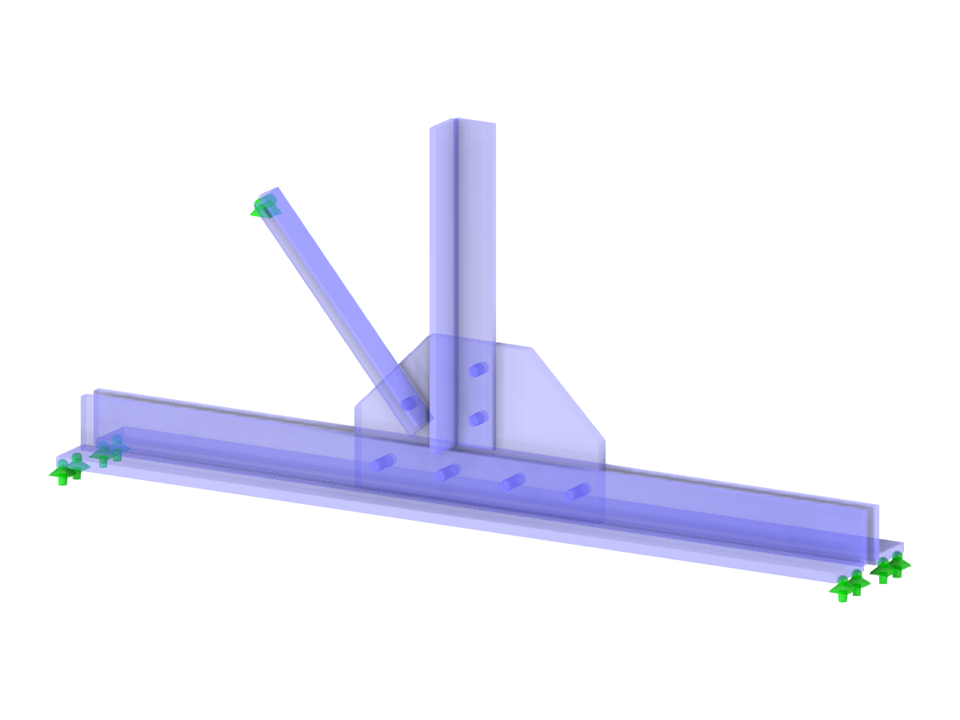

L-Profile Connection with Diagonal Brace
Model to Download
Description
Parameterization of geometry of a joint between double L-section steel beams, perpendicular L-section steel beam and diagonal brace.
Model created by the technical team of Dlubal Latam. The model is also available as a parameterized block at the Dlubal Latam site.
Keywords
Steel L-Section Beam Connection Diagonals Brace
Write Comment...
Write Comment...
- Views 293x
- Downloads 11x
- Updated 2 August 2023
- Block parameters editable dynamically
- Number of Nodes 68
- Number of Lines 63
- Number of Members 11
- Number of Surfaces 23
- Number of Solids 0
- Number of Load Cases 2
- Number of Load Combinations 5
- Number of Result Combinations 0
- Total Weight 0,134 t
- Dimensions 1,600 x 0,710 x 0,244 m
