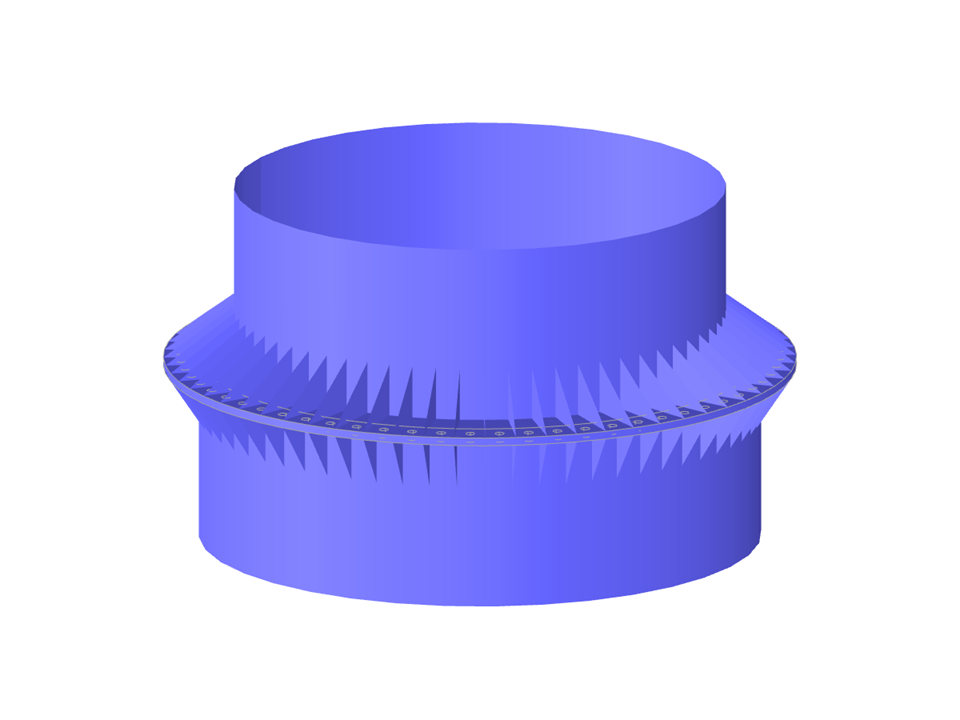

Parameterization of the geometry of a joint of monopost sections of different diameters, formed by hollow circular section metal tubes, joined by 64 bolts. Joint stiffened with 64 gussets.
Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Monopole Segments Joint
| Block parameters editable dynamically | |
| Number of Nodes | 969 |
| Number of Lines | 717 |
| Number of Members | 64 |
| Number of Surfaces | 331 |
| Number of Solids | 1 |
| Total Weight | 0.739 tons |
| Dimensions | 10.78 x 10.78 x 7.42 feet |
| Program Version | 5.28.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
