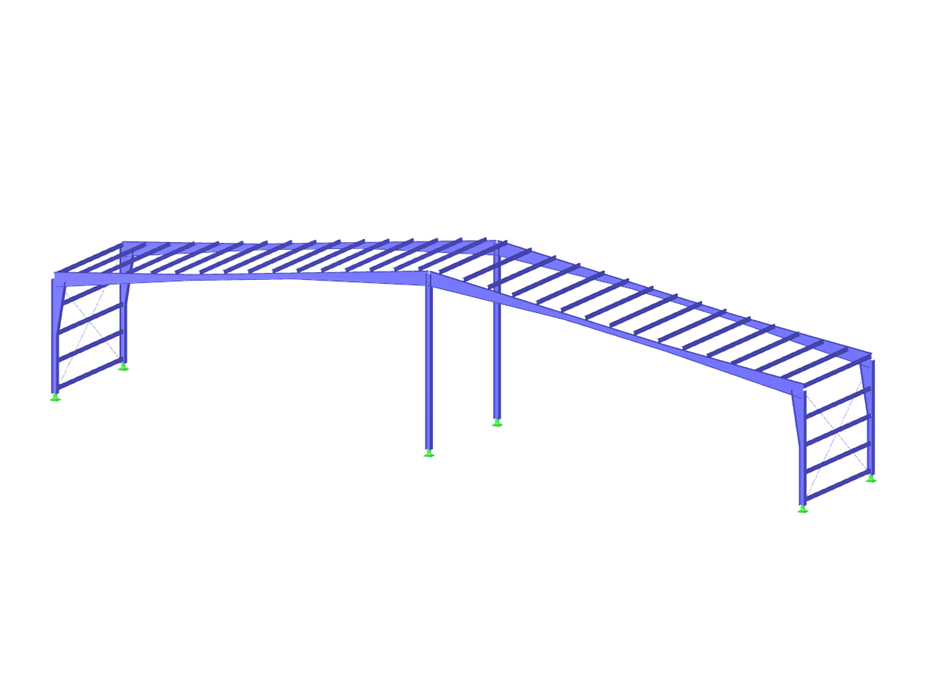

Parameterization of geometry of two-bay steel hall module. Cross-bracing on the side panels. Side columns with a variable cross-section.
A model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
Two-Span Hall Module
| Block parameters editable dynamically | |
| Number of Nodes | 96 |
| Number of Lines | 66 |
| Number of Members | 66 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 19 |
| Number of Result Combinations | 3 |
| Total Weight | 7.855 tons |
| Dimensions | 125.72 x 20.73 x 27.21 feet |
| Program Version | 5.21.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
