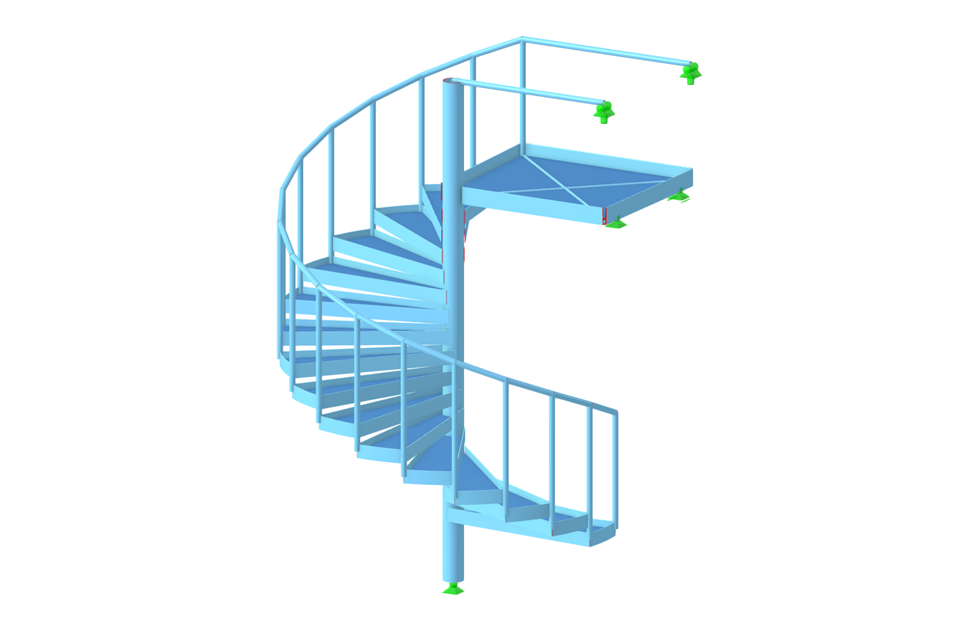

Steel spiral staircases provide an elegant and space-saving solution for vertical access in buildings. Due to their curving design, they seamlessly integrate with modern architecture while providing a strong and durable structure. Versatile and adaptable, spiral staircases are ideal for both indoor and outdoor areas.
Spiral Staircase
| Number of Nodes | 174 |
| Number of Lines | 173 |
| Number of Members | 140 |
| Number of Surfaces | 17 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.637 tons |
| Dimensions | 9.51 x 14.12 x 9.48 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
