This model features a beam-to-beam connection using a cleat and bolted joints configured for a pinned beam structure. The setup is designed to demonstrate the connection efficiency under various loading conditions, showcasing typical real-world application scenarios. Critical analysis can be performed for structural compliance and performance evaluation. Further insights into connection design can be developed with variations in bolt arrangements.

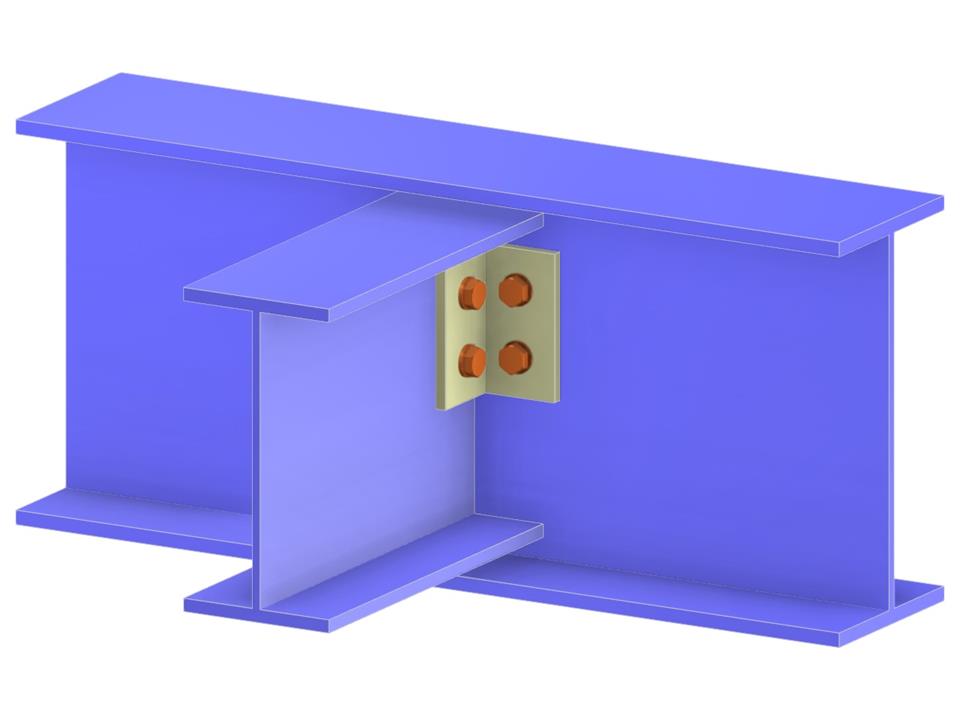

Beam to Beam Connection with Cleats and Bolts
| Number of Nodes | 4 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.037 tons |
| Dimensions (Metric) | 0,680 x 0,000 x 0,320 m |
| Dimensions (Imperial) | 2.23 x 0 x 1.05 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
