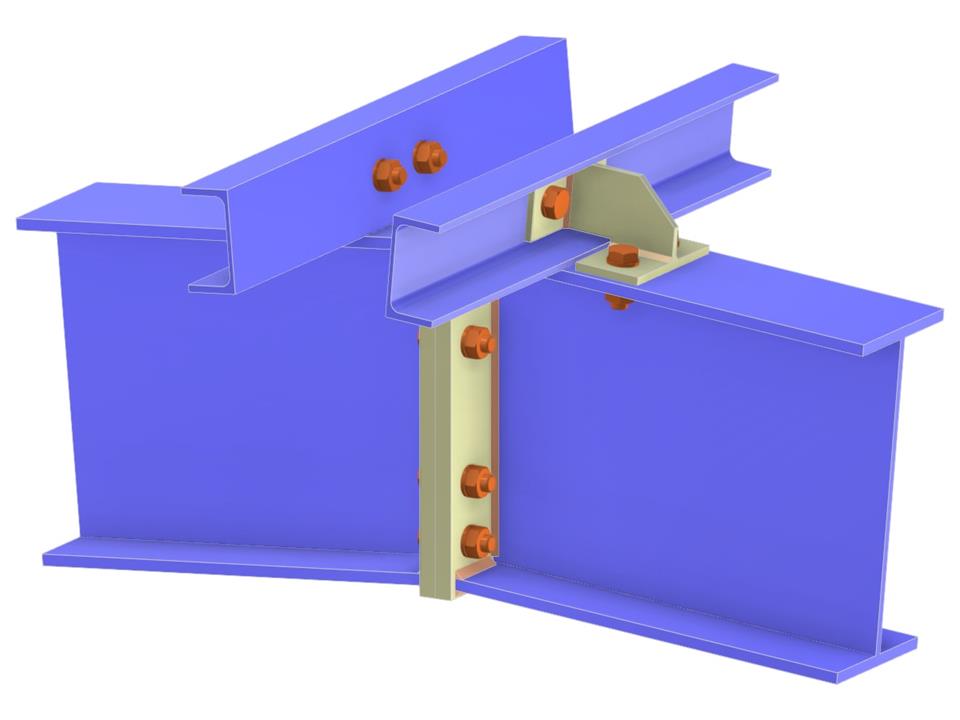

This model illustrates a detailed connection of ridge purlin made of two back to back channels to a roof beam of I profile via brackets. Brackets are bolted both to purlin channels and to roof beams. Roof beams are bolted via end plates. The model is a useful example for understanding bolted plate to plate connections, perfect for educational and practical applications.
Ridge Purlin to Roof Beam
| Number of Nodes | 5 |
| Number of Lines | 4 |
| Number of Members | 6 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.115 tons |
| Dimensions (Metric) | 1,435 x 0,063 x 1,000 m |
| Dimensions (Imperial) | 4.71 x 0.21 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
