The model illustrates the design of a complex steel connection featuring various components such as a base plate, gusset plate, and cap plate. It includes a bolted diagonal connection with anchoring of column and diagonal RHS sections. The setup provides a comprehensive view of the interaction between different elements in a structural connection, ensuring stability and load distribution in engineering structures.

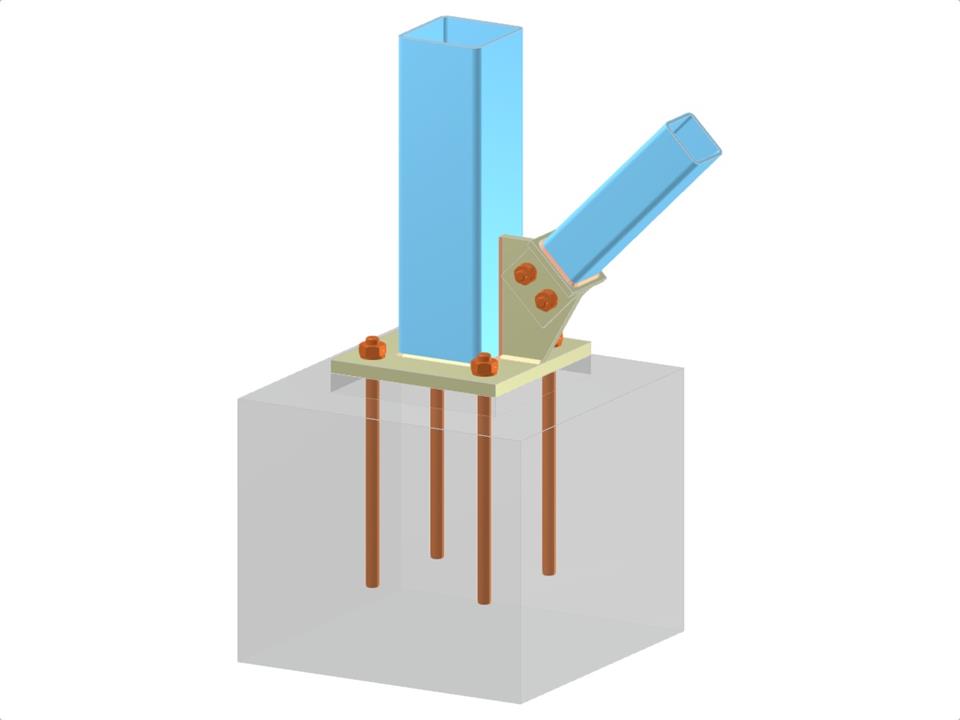

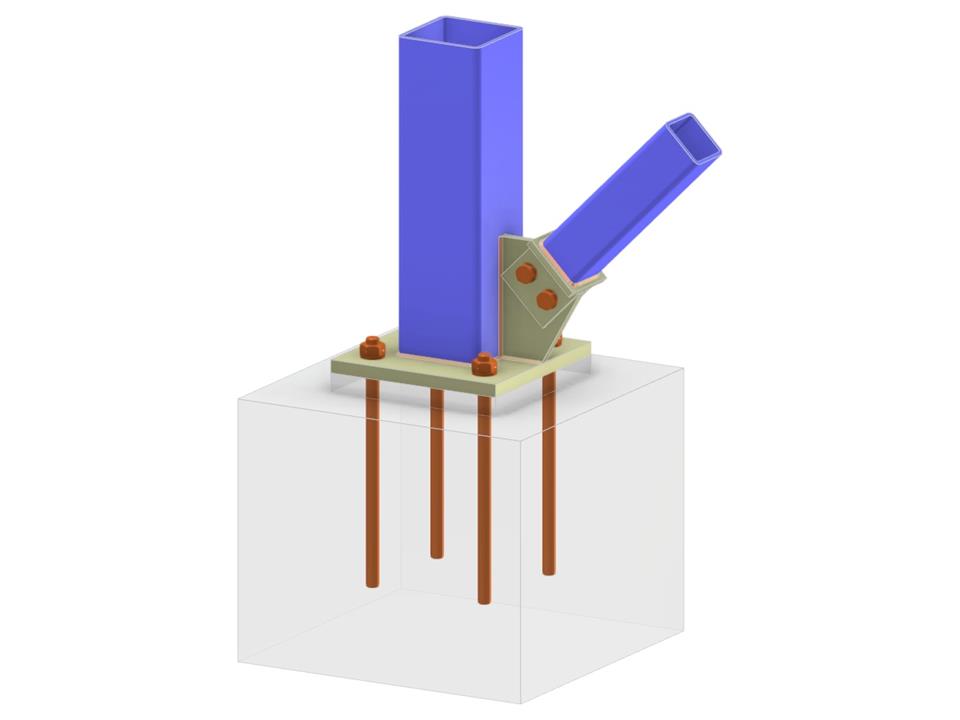

Column Base with Gusset Plate and Bolted Diagonal Connection
| Number of Nodes | 3 |
| Number of Lines | 2 |
| Number of Members | 2 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 0 |
| Number of Load Combinations | 0 |
| Number of Result Combinations | 0 |
| Total Weight | 0.040 tons |
| Dimensions (Metric) | 1,000 x 1,000 x 0,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
