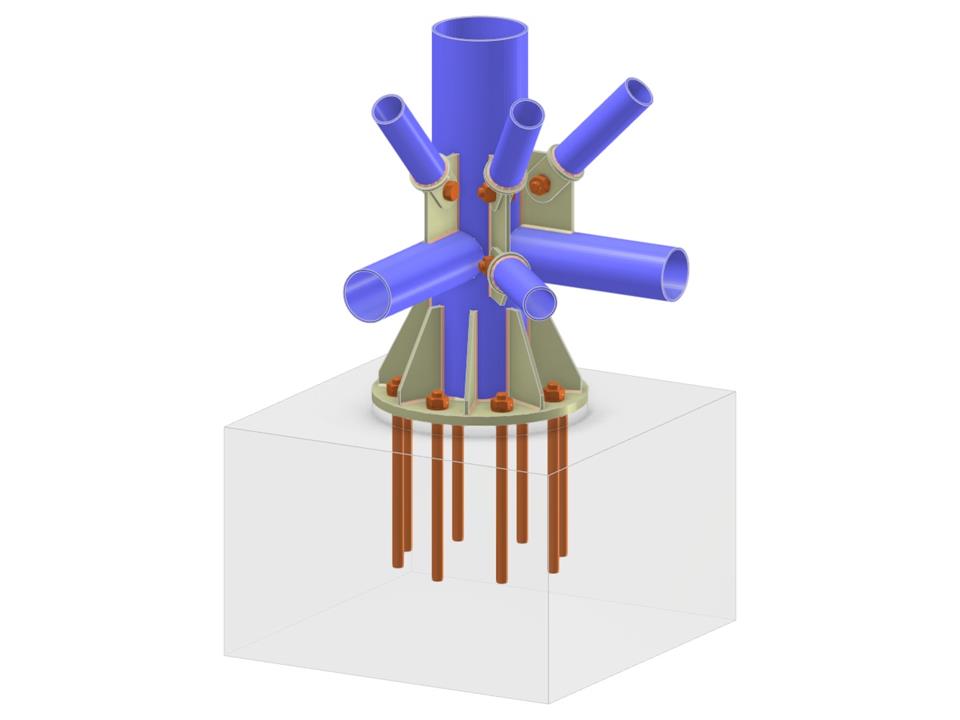

This model presents a column base connection featuring a circular hollow section (CHS) column with three CHS diagonals and three CHS horizontals of vertical bracing in three planes. The diagonals are bolted to the gusset plates via double tongue connecting plates; the horizontals are welded directly to the column. The column is anchored to the concrete base via circular base plate stiffened by ribs and anchor bolts.
Column Base with Diagonals and Horizontals of Vertical Bracing
| Number of Nodes | 8 |
| Number of Lines | 7 |
| Number of Members | 7 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 0.108 tons |
| Dimensions (Metric) | 1,000 x 0,750 x 1,000 m |
| Dimensions (Imperial) | 3.28 x 2.46 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
