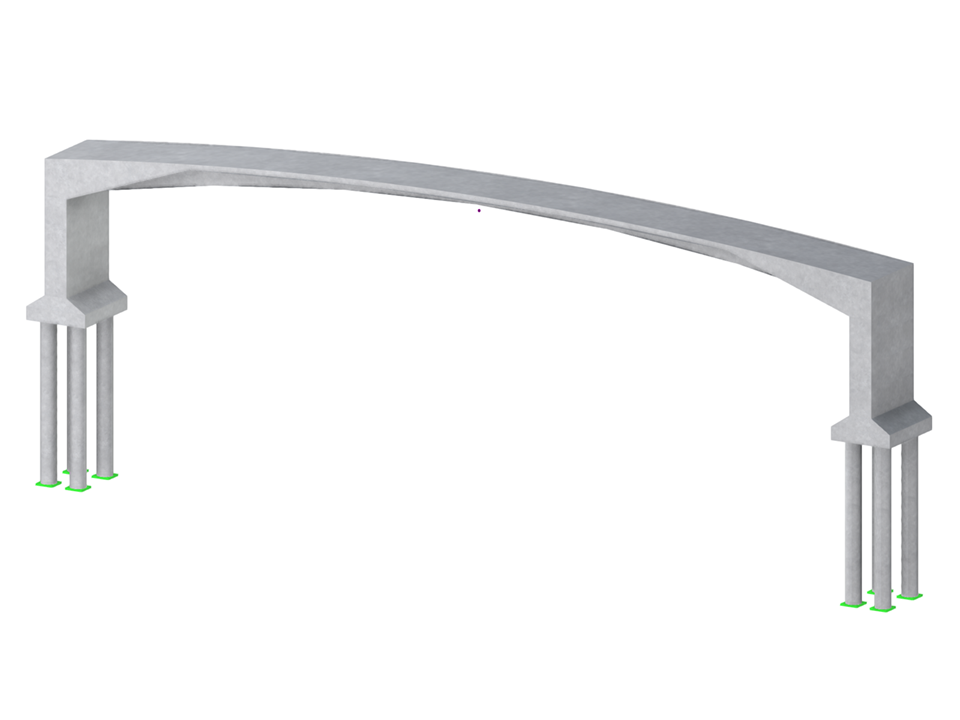

The model was created as part of the Dlubal Talent ČVUT competition and presents a design for a pedestrian and cyclist bridge over the Jizera River in Semily. The author, Martin Forman from the Department of Concrete and Masonry Structures at ČVUT, designed an integrated parapet structure made of post-tensioned concrete, which minimizes maintenance due to the absence of bearings and expansion joints. The alternative design included a comparative study with a beam footbridge and reinforced concrete variants, with post-tensioning proving necessary for the given geometry. Piles were replaced by micropiles due to the rocky subsoil.
Footbridge Across the Jizera in Semily
| Number of Nodes | 191 |
| Number of Lines | 242 |
| Number of Members | 72 |
| Number of Surfaces | 76 |
| Number of Solids | 11 |
| Number of Load Cases | 10 |
| Number of Load Combinations | 12 |
| Number of Result Combinations | 0 |
| Total Weight | 252,785 t |
| Dimensions (Metric) | 51,375 x 13,000 x 8,846 m |
| Dimensions (Imperial) | 168.55 x 42.65 x 29.02 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
