Solar Chimney Power Plant, Germany

Customer Project

This article was translated by Google Translator

View original text

Structural Engineering Kai Ollesch, Ulrich Körner, Robin Eckardt
Students at Dortmund University, Germany
P3 "Tower Constructions" Project
Academic Year 1997/98
www.tu-dortmund.de

Within the P3 Project "Tower Constructions", students of Dortmund University in Germany designed and analyzed a solar chimney power plant.

The Aufwindkraftwerk is a renewable energy plant, which generates the electrical power from solar heat at low temperature. The solar heat is collected by the collectors, which surround a fireplace in the center of the plant up to a distance of several kilometers. The warm air rises in the chimney due to natural convection and the upwind drives a vertical-axis turbine at the bottom of the tower tube. The turbines then convert the mechanical energy into electrical energy.

The wind power station of this student project is designed as a steel structure. The stability of the 1,300m-high chimney is ensured by cable members. The area of the collector is more than 3.5 km². The total weight of the wind turbine is about 122 000 tonnes.

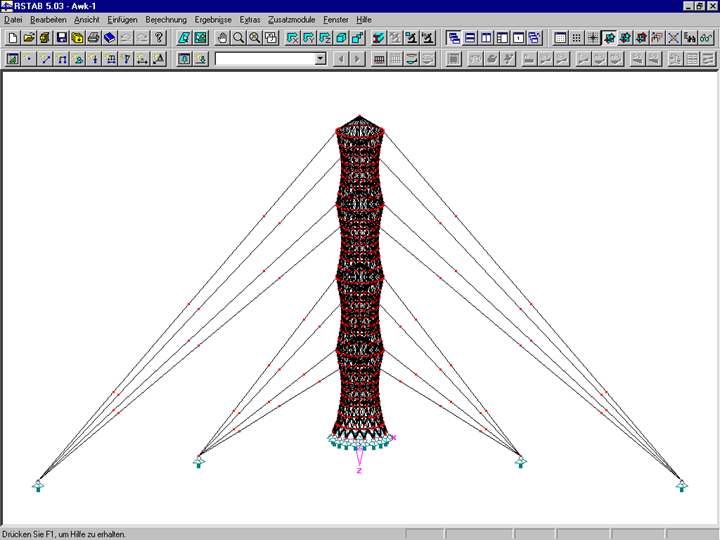

For the design of the wind turbine, a spatial model of the steel structure was created in RSTAB with a total of 801 nodes, 3,128 members and 19 cross-sections.
