Tangential Cyclone for Metallurgical plant Belgo Mineira, Brazil

Customer Project

Structural Engineering Ing.-Büro Dipl.-Ing. W.K. Hartmann
Macherscheider Straße 124 a
41468 Neuss, Germany

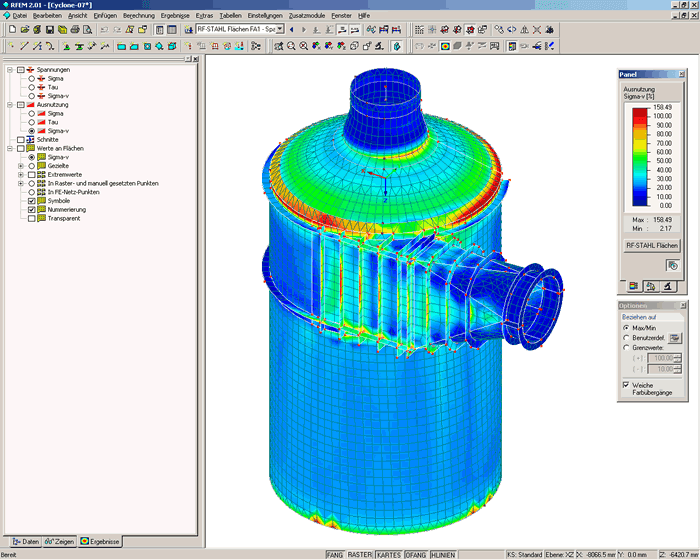

The cyclone represents a gas purification system of Furnace A in metallurgical plant Belgo Mineira in Brazil.

The tangential cyclone is used for separation of dust and ash particles. It is designed for internal pressure of 1.9 bar (190 kN/2) and a temperature of 250 °C.

The A516 (60) material was used in compliance with the American standard ASTM (corresponds to P265GH according to EN 10028).

In addition to service loads, the analysis considers wind loads as well. Also the effects (forces and restraining end moments) of outgoing and incoming pipelines were taken into account.
