Ice Hockey Arena in Jičín, Czech Republic

The new ice hockey arena in Jičín, Czech Republic, has an impressive, column‑free roof structure consisting of truss girders made of glued-laminated timber.

Structural analysis was performed in the structural engineering programs by Dlubal Software.

1449x

Roof Structure Made of Glued-Laminated Timber

Structural System

The roof construction, built of GL28c glued-laminated timber, has the following dimensions:

Length: 236 ft
Width: 138 ft
Height: 36 ft

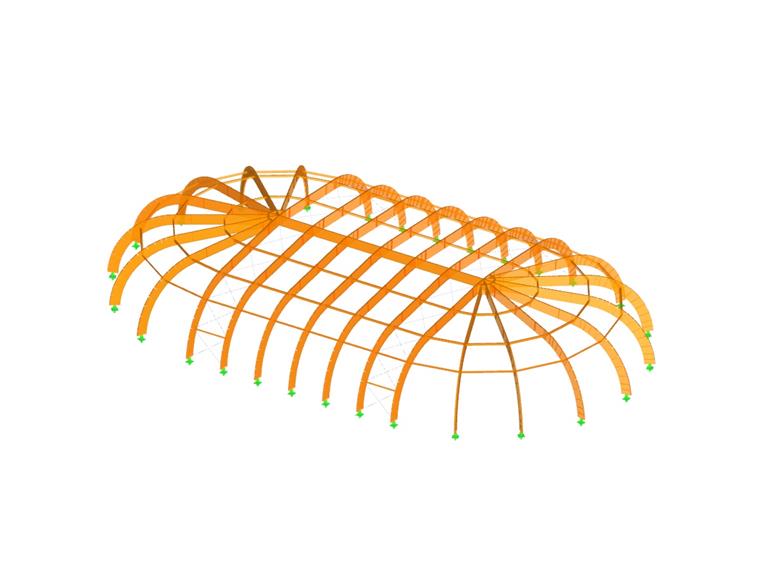

The principal roof truss is composed of seven three‑hinged frames arranged in a spacing of 16.4 ft, each with curved corners and a span length of 138 ft.

Seven half‑frames with a span length of 68.9 ft stand at both ends of the hall. They are connected to the exterior main frames in a star shape.

The secondary framework structure consists of single‑span purlins which are attached to the frame. The roof is stiffened by the frames in the transversal direction and by steel bracing in the longitudinal direction.

The complete timber structure has been assigned to service class 2. All structural timber components have fire resistance class F 15, the structural steel parts have F 0.

The ice hockey arena opened its doors at the end of 2011.

Structural Analysis	Ingenieurbüro Baumruck + Oswald www.baumruck-oswald.de
Structural Design	Ingenieurbüro Baumruck + Oswald www.baumruck-oswald.de
Design and Construction	ACS Production acs-production.com

Project Specifications

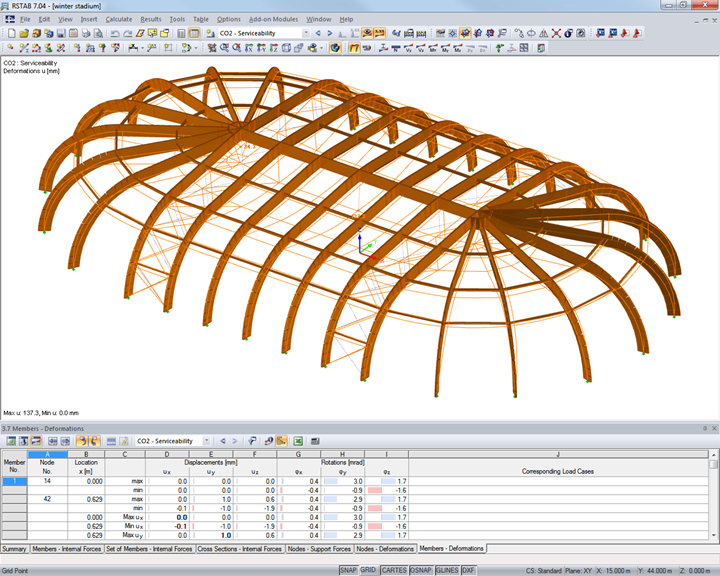

Graphical Representation of Deformation in RSTAB (© WIEHAG GmbH)

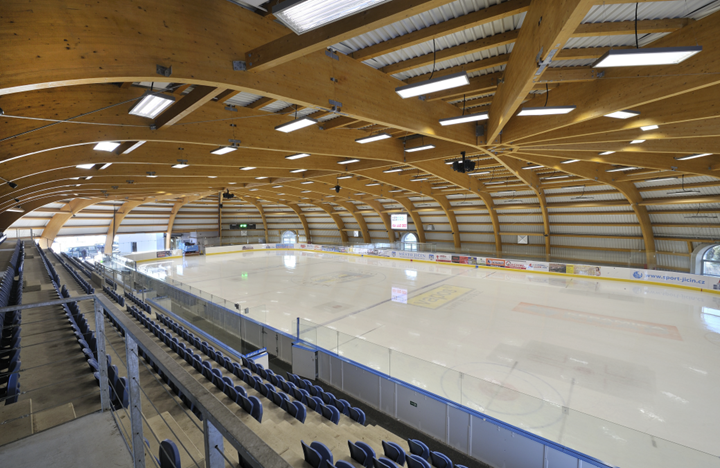

Interior View of Ice Hockey Arena (© KASPER CZ s.r.o.)

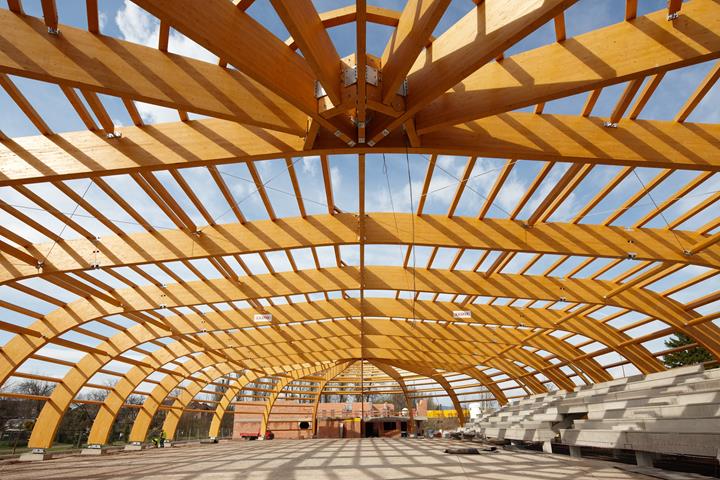

Column-Free Roof Structure Consisting of Glulam Truss Girders (© KASPER CZ s.r.o.)

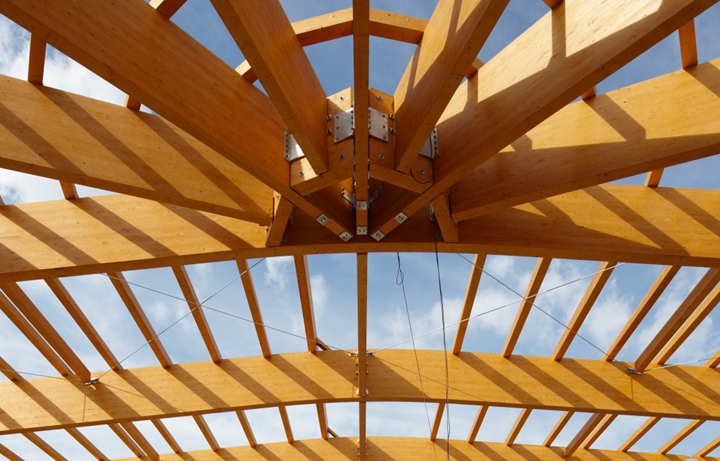

Half-Frame Connection on Exterior Main Frame (© KASPER CZ s.r.o.)

Model data

Number of Nodes 559

Number of Lines 694

Number of Members 694

Number of Load Cases 11

Number of Load Combinations 104

Number of Result Combinations 3

Total Weight 114.799 tons

Dimensions 237.25 x 138.82 x 31.59 feet

Program Version 5.11.01
