Rope Playground Equipment, Germany
The German company Berliner Seilfabrik designs and produces playground equipment for children since the 1970s. Climbing in the spatial rope net structures helps children to develop and improve their psychomotor skills and three-dimensional perception abilities. The pieces of play equipment have names like Globe, UFO, or Twist & Shout.
Berliner Seilfabrik GmbH & Co.
Dipl.-Des. Heinz Bornemann
Bad Bentheim, Germany
Heinz Bornemann, the customer of Dlubal Software, provides structural analysis and design for a wide range of this playground equipment. for example the 'Globe' and various types of 'Tetragode'. For the calculation of spatial supporting structures, the structural frame analysis software RSTAB is used.
GlobeThe outer frame of the Globe play structure consists of eight curved glued-laminated beams of of 4 23⁄32 in / 9 29⁄64 in. The inner three-dimensional net includes the ropes 'U-Rope' developed by Berlin Seilfabrik. The outer dimensions L x W x H are approximately 14.8 ft x 14.8 ft x 16.4 ft. The analysis was performed in the add-on modules TIMBER Pro and STEEL.
Tetragode is a central mast play structure. A number of children can climb into great heights simultaneously. This type of Tetragode is about 21.3 ft high. The spatial rope net also consists of U-Ropes by Berliner Seilfabrik and extends from the central steel mast outwards in four directions.
Do you have questions or need advice?
Contact our free e-mail, chat, or forum support or find various suggested solutions and useful tips on our FAQ page.
Models to Download
Knowledge Base Articles
The stresses in the cross‑section of the member are calculated in the so‑called stress points. These points are set at such locations in the cross‑section, at which the extreme values for the stresses due to the loading types can occur in the material.

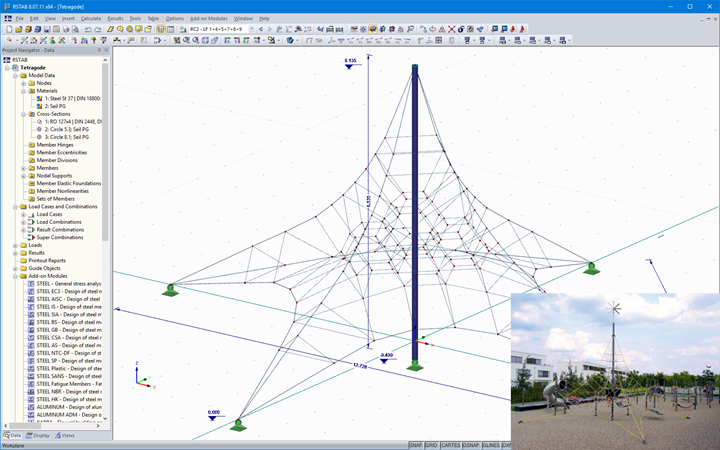

3D model and photo of a "tetragode" (© screenshot: Dipl.-Des. Heinz Bornemann, Bad Bentheim/© Picture: Berlin Cable Factory)

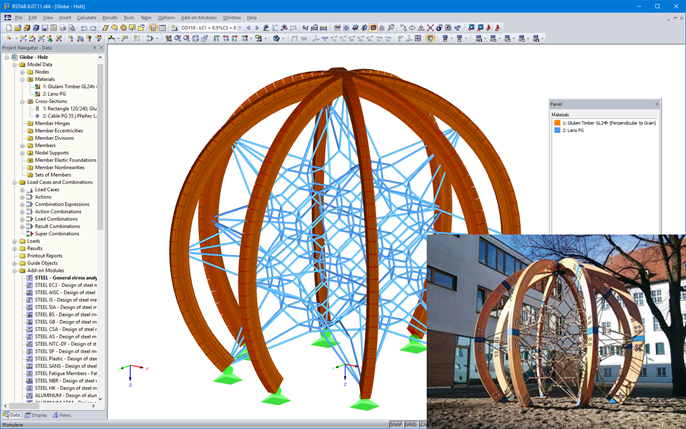

3D model and photo of the rope play equipment "Globe" (© screenshot: Dipl.-Des. Heinz Bornemann, Bad Bentheim/© picture: Berliner Seilfabrik)
