RF-STEEL Cold-Formed Sections

The RF-STEEL Cold-Formed Sections add-on module performs design of cold-formed steel members according to the Eurocode standards. This add-on module is an extension of RF‑STEEL EC3 and provides special features for the design of cold-formed sections, such as L-sections, Z-sections, C-sections, channels, hat sections, and CL-sections.

Cold-Formed Steel Member Design According to EC3

Total items: 3

RF-/STEEL Cold-Formed Sections Module Extension | Design of Cold-Formed Sections According to EN 1993-1-3

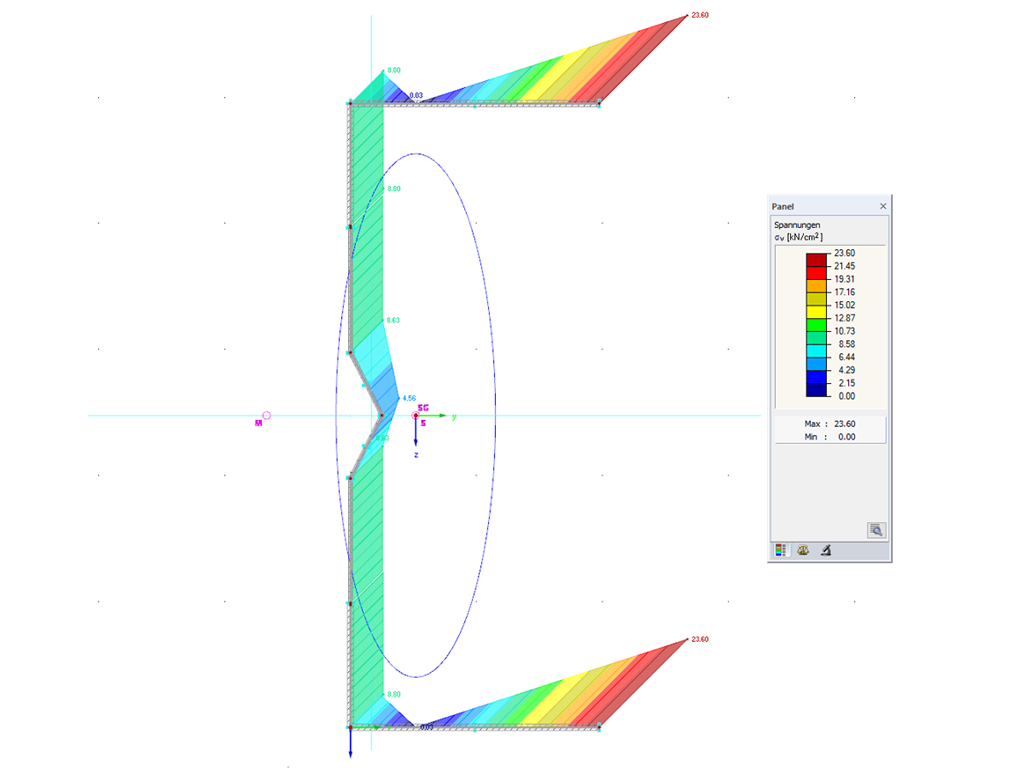

Channel with corrugation (cold-Formed Cross-Section)

General

RF-/STEEL Cold-Formed Sections | Features

Available for cold-formed L, Z, C, channel, top-hat, and CL sections from the cross-section database, as well as for general cold-formed (non-perforated) SHAPE-THIN-9 sections
Determination of the effective cross-section considering the local buckling and the distortional buckling
Cross-section ultimate limit state, stability, and serviceability limit state designs according to EN 1993‑1‑3
Design of local transverse forces for webs without stiffening
Available for all National Annexes included in RF-/STEEL EC3
Module extension RF-/STEEL Warping Torsion (license required) for stability analysis according to second-order analysis as stress analysis including consideration of the 7th degree of freedom (warping)

Activating Designs for Cold-Formed Sections in RF-/STEEL EC3

General

RF-/STEEL Cold-Formed Sections | Input

Since RF-/STEEL Cold-Formed Sections is fully integrated in RF-/STEEL EC3, the data are entered in the same way as for the usual design in this module. It is only necessary to select the design option for cold-formed cross-sections in the Details dialog box.

Design Results for Cold-Formed Top-Hat Section in RF-/STEEL EC3

General

RF-/STEEL Cold-Formed Sections | Results

The design results are displayed in RF-/STEEL EC3 in the usual way.

Among other results, the corresponding result windows include the effective cross-section properties due to axial force N, bending moment My, bending moment Mz, internal forces, and design summary.
