Linear and Nonlinear Structural Analysis, Result Evaluation, and Printout Report

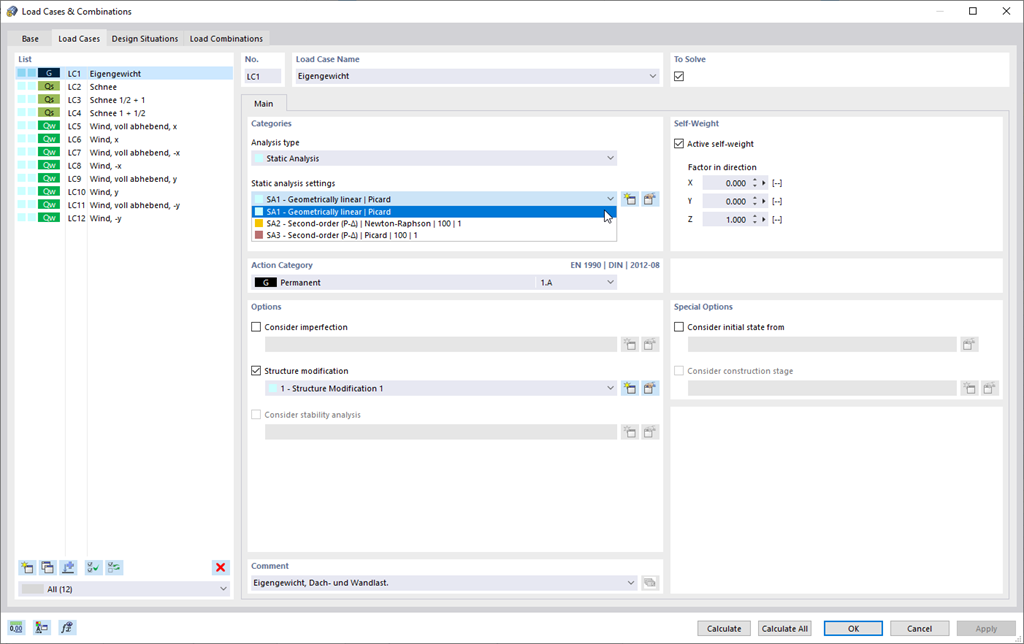

Individual Setting of Calculation Parameters
Select the individually suitable calculation parameters for your project: You can perform the calculation for all member types according to the linear static, second-order, or large deformation analysis. You have this selection option for load cases and load combinations. You can specifically set further calculation parameters for load cases, load combinations, and result combinations, which ensures a high degree of flexibility with regard to the calculation method and detailed specifications.
Optional Incremental Load Application
This feature helps you with the load application. You can have the required loading applied incrementally. This option is particularly suitable for your calculations according to the large deformation analysis. Furthermore, you can easily perform post‑critical analyses in RFEM.
Computation Kernel with Multi-Core Processor Technology
Convince yourself by the powerful calculation kernel, its optimized networking and support of multi-core processor technology. This provides you with the advantages, such as parallel calculations of linear load cases and load combinations using several processors without additional demands on the RAM. The stiffness matrix only has to be created once. Thus, you can calculate even large systems with the fast direct solver.
If you need to calculate multiple load combinations in your models, the program initiates several solvers in parallel (one per core). Each solver then calculates a load combination, which improves the core utilization.
You can systematically follow the development of the deformation displayed in a diagram during the calculation, and thus precisely evaluate the convergence behavior.
Color Representation of Internal Forces
Clear arrangement is a great advantage of RFEM 6. In your result tables, it is shown in color whether the internal forces are positive or negative, and what is the relation to the extreme values. Also in the graphic, you can recognize the positive or negative internal forces due to different colors. These colors can be changed, if necessary.
Result Diagrams
Customize the display of your data to your individual preferences. The result diagrams of members, surfaces (RFEM), and supports are freely configurable. You can define smooth ranges with average values or, if necessary, display and hide the result distributions. This ensures targeted evaluation of your results. Furthermore, you can easily add all diagrams to the printout report.
Visualization of Results
Also on the rendered model, you see your results in a clear color display. Thus, you can exactly recognize the rotation of a member or the stress distribution in a surface, for example. If you want to set the colors and value ranges, you can easily do so in the control panel.

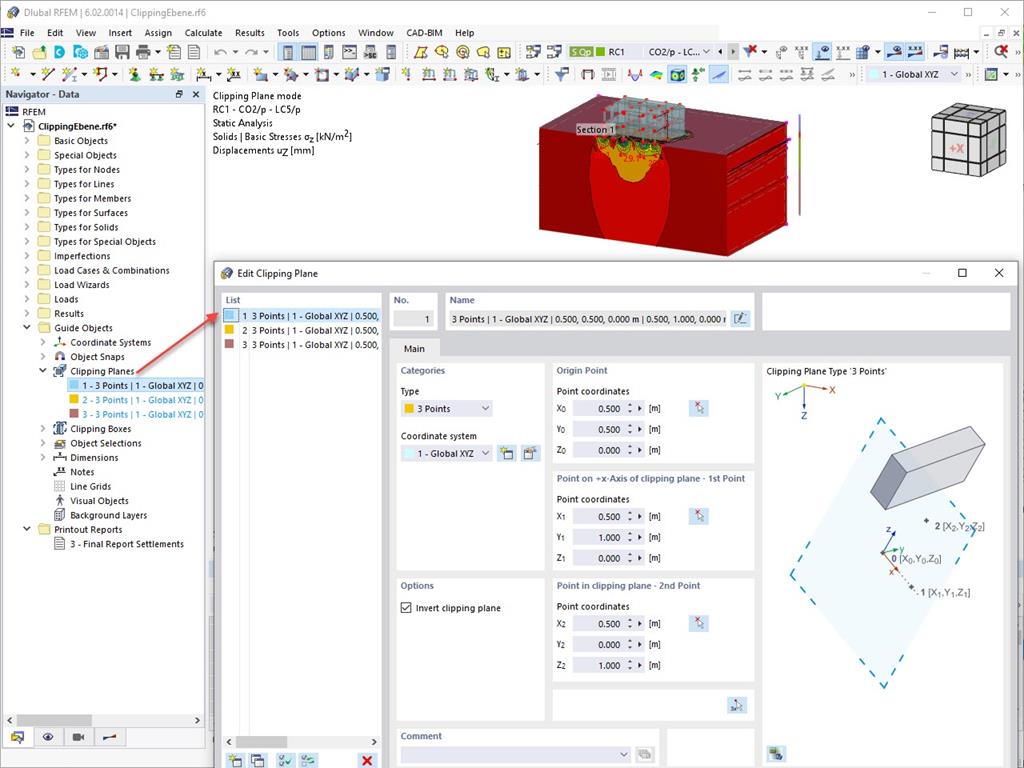

Result Display via Clipping Plane
This feature also contributes to the clearly-arranged display of your results. Clipping planes are intersecting planes that you can place freely throughout the model. The zone in front of or behind the plane is consequently hidden in the display. This way, you can clearly and simply show the results in an intersection or a solid, for example.

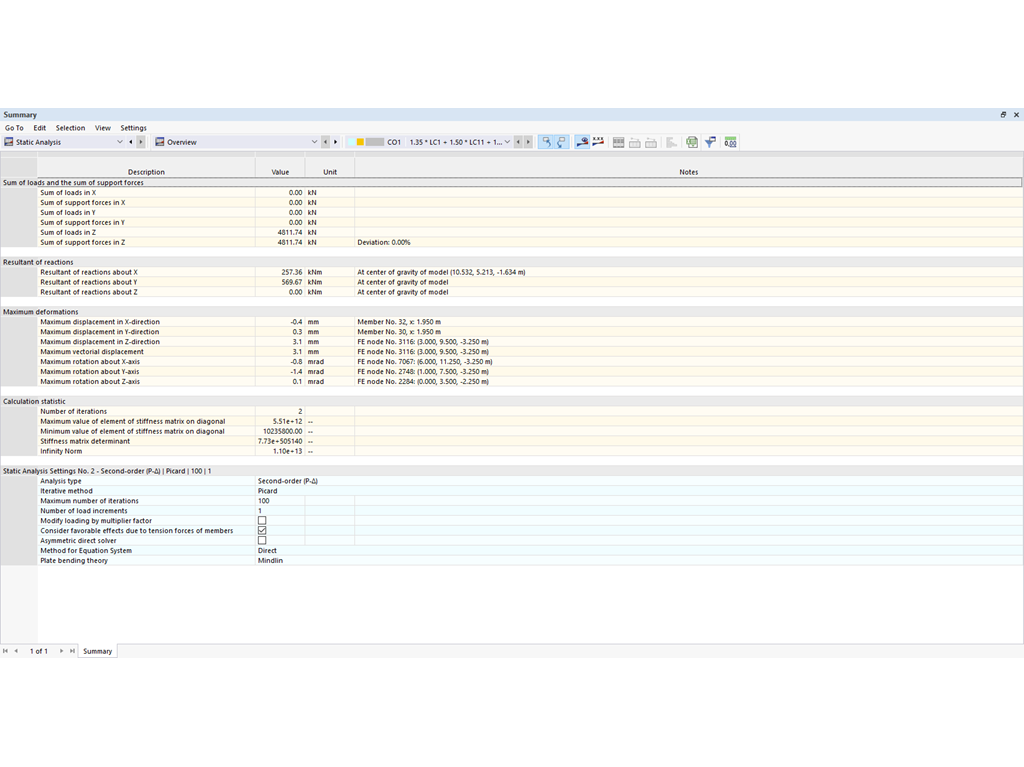

Detailed Result Tables
With clearly arranged tables, you can always keep an eye on your results. The first result table displays a summarized overview providing the equilibrium of forces in the structural system and the maximum deformations. Moreover, you also get the information about the calculation process. You can filter the result tables by specific criteria, such as extreme values or design locations, in order to obtain a better overview.

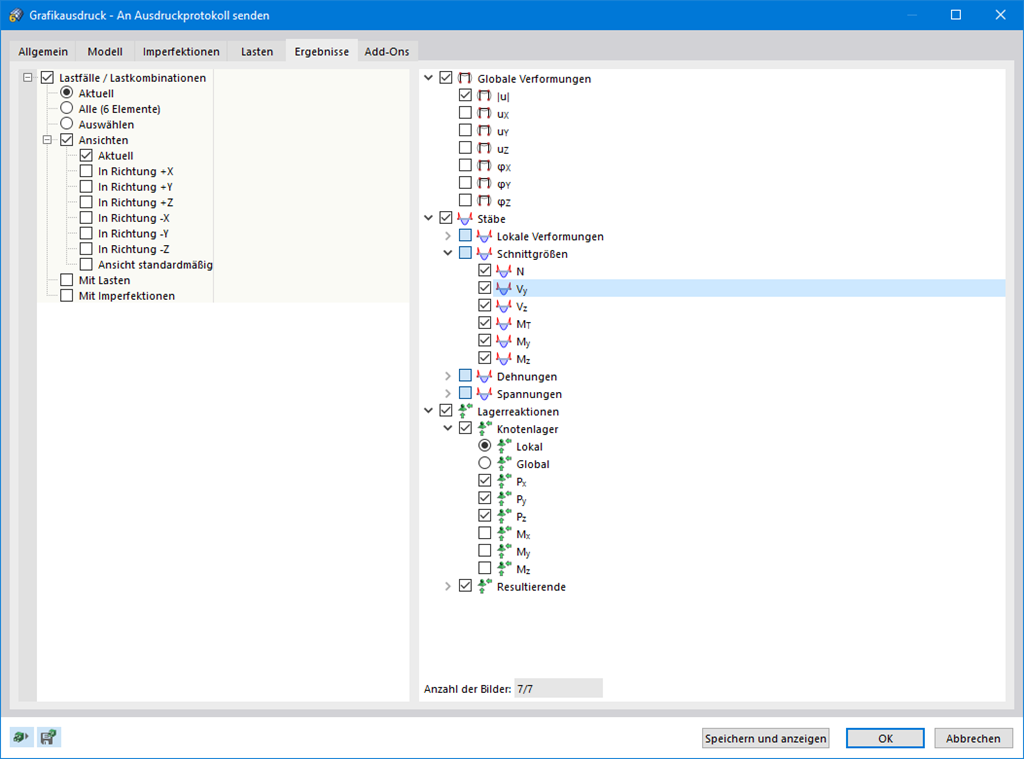

Multi Print of Graphics
Use the mass print function for your model data, loads, and results. You can create graphics from different directions that you define. For example, you can print all internal forces as an isometric view with just a single mouse click.
Multilingual Report Output
Of course, RFEM 6 also offers extensive language settings for our customers from all over the world. Various languages are available for the results in your printout report: English, German, French, Spanish, Portuguese, Italian, Czech, Polish, Russian, and Chinese. You can create further language versions individually.
You can easily import additional texts. Configure the page numbering to use prefixes, for example. Furthermore, you can export the report as a PDF file.
Management of Printout Report Scope
Decide for yourself how extensive your printout should be and adjust it individually using the selection criteria. Simply create printout templates from the existing projects. You can reuse them across your projects.
