Color Representation of Internal Forces

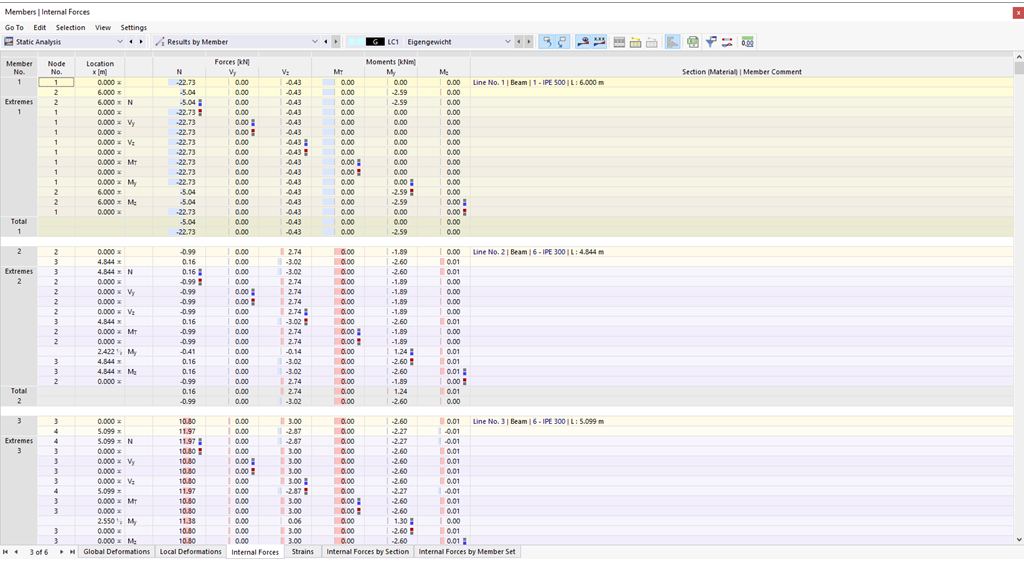

Clear arrangement is a great advantage of RFEM 6. In your result tables, it is shown in color whether the internal forces are positive or negative, and what is the relation to the extreme values. Also in the graphic, you can recognize the positive or negative internal forces due to different colors. These colors can be changed, if necessary.
