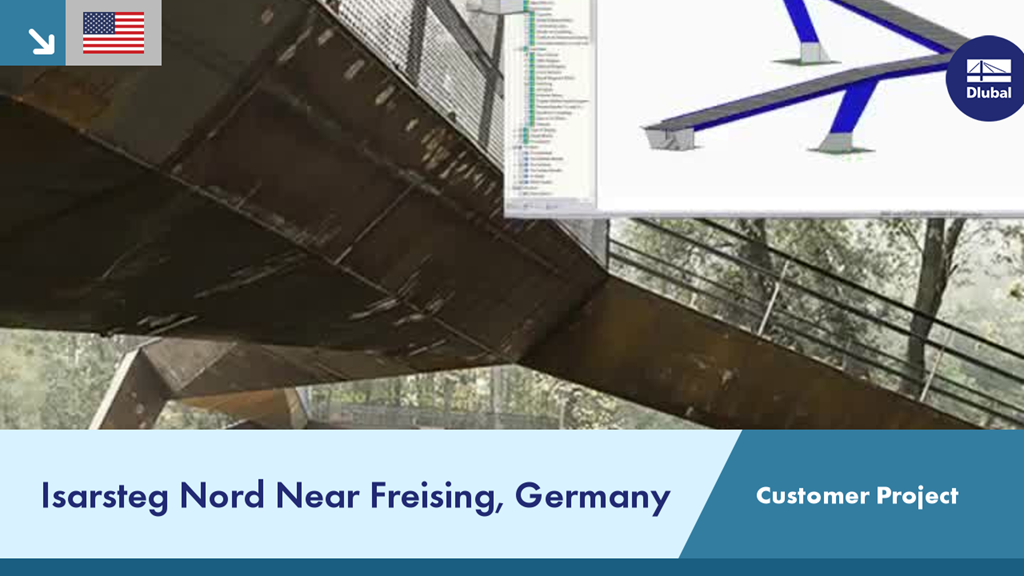

The bridge construction of Isarsteg as integrating artwork fits perfectly into the surrounding landscape. Taking nature as an example, the bridge overspans the Isar river like a branched limb. The ramps, stairs, columns and horizontal beams represent together the spatial framework. The pedestrian and cycle bridge, in total 160 m long, was made of weather-resistant structural steel.
The engineering office Bergmeister Ingenieure used the programs RFEM and SHAPE-THIN for the structural analysis of the 3D structure. The slim bridge is a rigid, statically indeterminated frame structure. All components, including the foundation and the abutment, are rigidly connected to each other.
Client:
City of Freising, Building Division of the Municipal Administration for Road and Bridge Construction | http://bit.ly/2XTrNsI
Project Management, Structural Analysis:
Bergmeister Ingenieure GmbH | http://bit.ly/2XNFqtw
Structural Design:
Arch. Christoph Mayr, J2M Architekten | http://bit.ly/2XNFrxA
Dr.-Ing. Josef Taferner, Bergmeister Ingenieure GmbH and Dr.-Ing. Oliver Englhardt, &structures | http://bit.ly/2XNFs4C
Final Planning:
Dipl.-Ing. Matthias Gander und Dipl.-Ing. Philipp Prighel, Bergmeister Ingenieure GmbH and Prof. Antonio Capsoni, B&C Associati | http://bit.ly/2XXx5Ul
Photos and model:
© by Oliver Jaist
© by Bergmeister Ingenieure GmbH
More information:
http://bit.ly/2xFItUX
