Question:

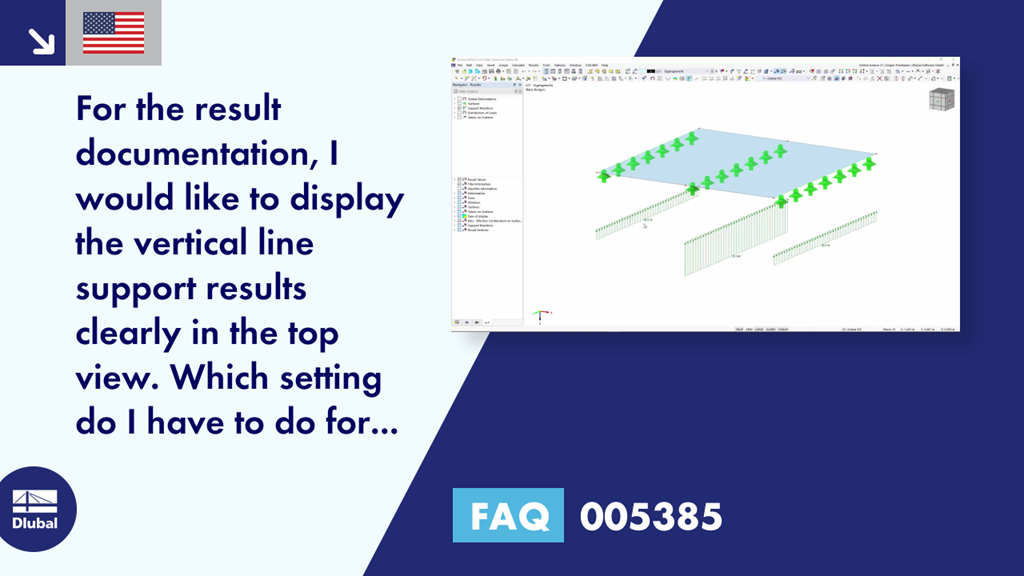

For the result documentation, I would like to display the vertical line support results clearly in the top view. Which setting do I have to do for this?
Answer:
You can do this quickly. In the Results navigator, go to the display settings of the results. There, you can activate the "Draw in XY Plane" option under the Support Reactions.
