How can I insert my own text in the printout report and change its format?

Answer

You can insert user-defined text into the printout report in two ways.

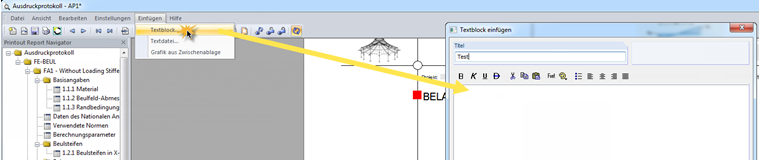

If you use the "Text Block" option on the "Insert" menu, you can manually insert the text from another file in a dialog box or by pressing [Ctrl]+[V]. Then you can change, for example, the font size and font type.

If you use the "Text File" option on the "Insert menu, the text is displayed as in the original file.

Keywords

Text block Text Printout report
