How can I change the scaling of results in sections in RFEM?

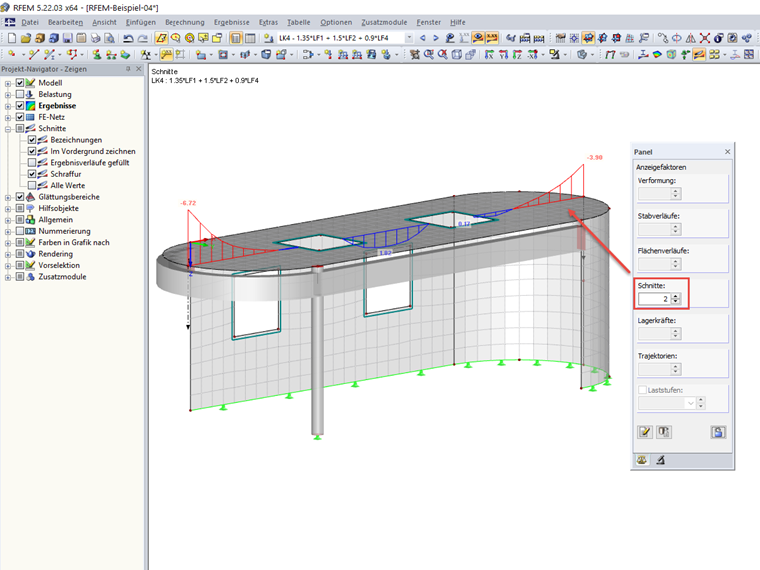

The scaling of the internal force line, ie the parabola stitches, you can set them in the window of the result control panel in the Display Factors tab.

To open the control panel, select the menu item "View" -> "Control Panel" or use the button of the same name (see the figure).

In this window, you can set the display factors for all displayed results.


Scaling Scale Control Panel Panel Section Display factor
