What is the easiest way to include the graphical results of several load cases in the printout report? Until now, I just clicked every single load case printed it into the graphic.

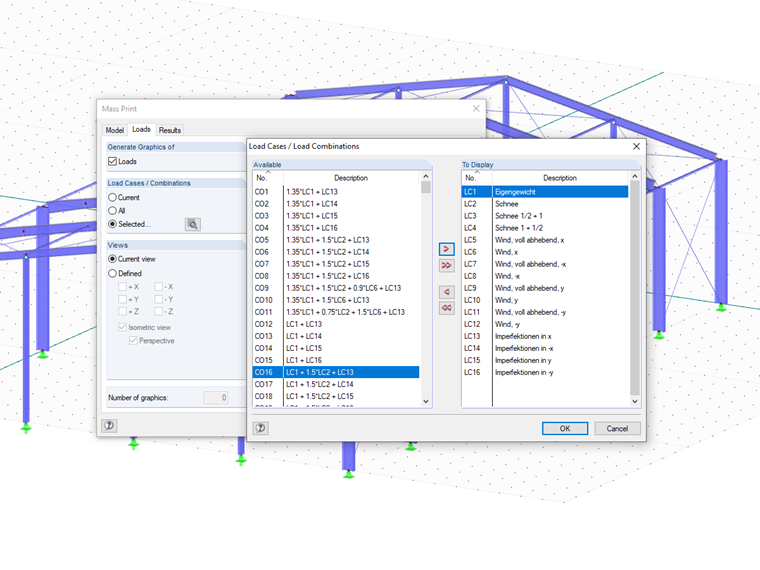

You can transfer the graphics in one go by selecting in the "Graphic Printout" dialog box the "Mass Print" option. In the "Results" tab of the new dialog box, you then can specify the load cases and also internal forces that are relevant for the automatic graphics (see figure).


Mass print Graphic printout Graphic Minutes Print
