FAQ 001481 EN

Printout Report RFEM RSTAB

How we can create standardized printout reports and use them as template on other computers?

Answer

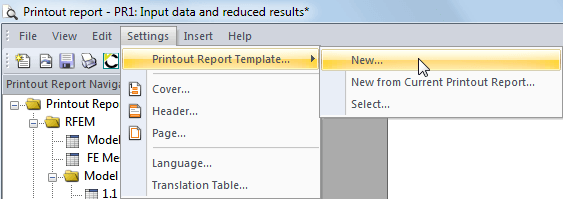

You can define new templates by selecting on the printout report menu:

- Settings/ Printout Report Template/ New
- Settings/ Printout Report Template/ New from Current Printout Report

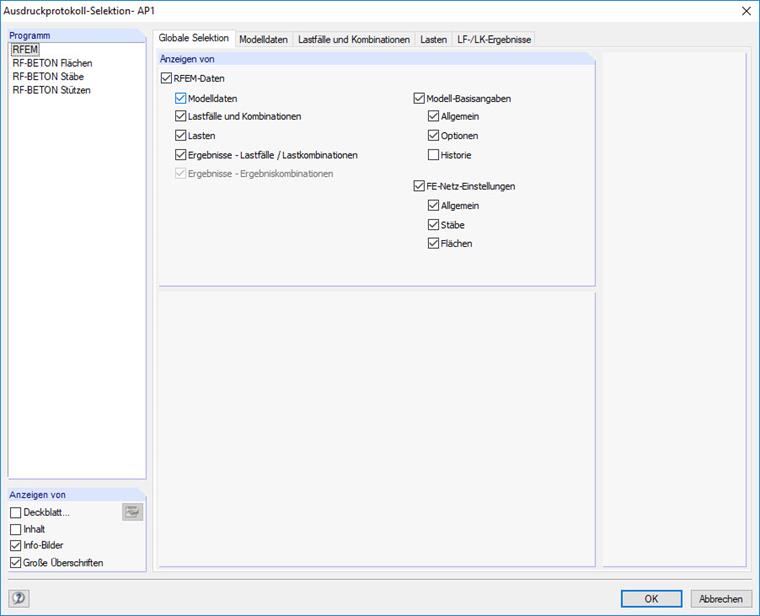

In the "Printout Report Selection" dialog box, specify the contents. Then, specify the name for the new template.

The printout report template is saved in the file RSTABProtocolConfig.cfg or RFEMProtocolConfig.cfg. You can find it in the master data folder of RSTAB or RFEM.

- C:\ProgramData\Dlubal\RSTAB 8.xx\General Data
- C:\ProgramData\Dlubal\RFEM 5.xx\General Data

Copy this file and replace it on the target computer.

Keywords

Printout, report, protocol, distribute
