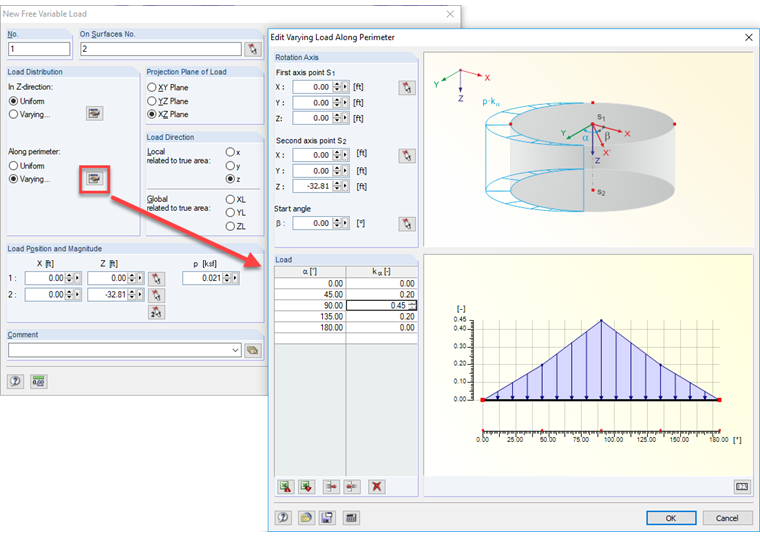

To do this, you can use the "Free Variable Load" load type. It allows you to define a load that acts variably along the perimeter, when specifying the rotation axis. Also, it is possible to separate the perimeter into several segments.
Furthermore, this load can be used to generate a load that is variable in height. In the model file provided, an example of a load with both variables is applied.
