FAQ 002021 EN

1 December 2017

Modeling | Structure RFEM RSTAB 5.xx 8.xx

I would like to edit the web thickness of a parametrized cross-section. How do I get back to the input dialog box with cross-section parameteres?

Answer

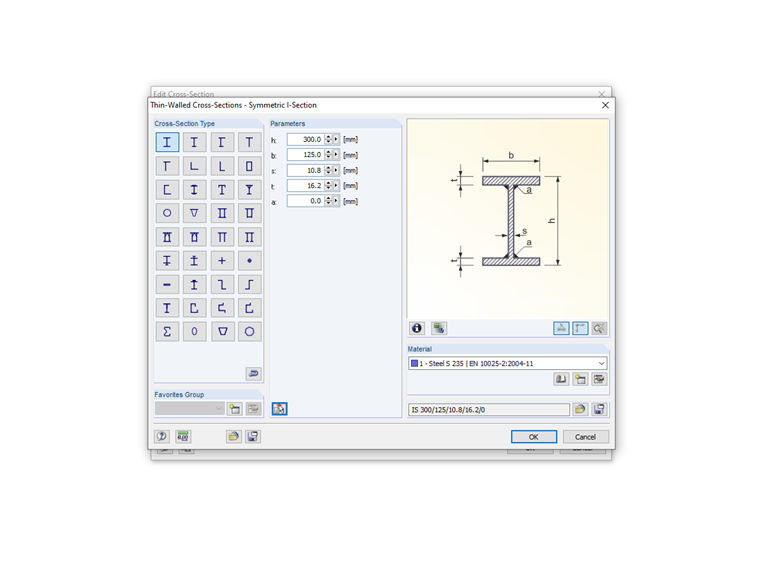

Click the [Edit] button in the "Edit Cross-Section" dialog box. The previous dialog box appears where you can adjust the cross-section parameters.
