FAQ 002346 EN 1 December 2017

Modeling | Structure RFEM RSTAB

Why are there no failing bars (tie rod, push rod, bending rod) when selecting the rod type?

Answer

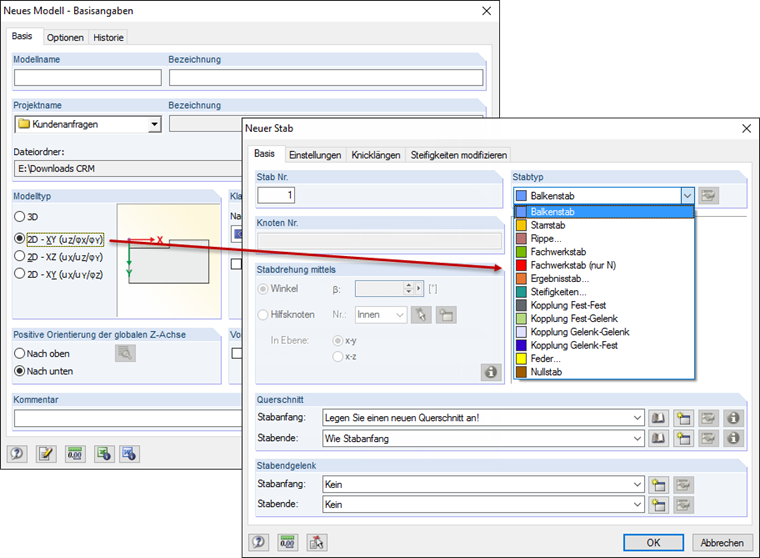

You have created a 2D system with disk bearing action [2D - XY (u Z / φ X / φ Y )]. Here, the failures are not activated and are therefore not required. Therefore, these rod types are not available.

Keywords

Failure tie rod push rod buckling bar
